Zettler Electronics Relay Modules PCB relay 619670

Zettler Electronics Brand: Zettler Electronics
The Zettler Electronics PCB relays are reliable components suitable for high-current applications.
Description Image Product Buy Pricing (Ex VAT) Coil Voltage Coil Resistance Contact Configuration Switching Current Connection Contact Material Control Mode Dimensions Durability Fall Time Height Length Max. temperature Minimum Temperature Mounting Type Response Time Switching Voltage Max Type Width

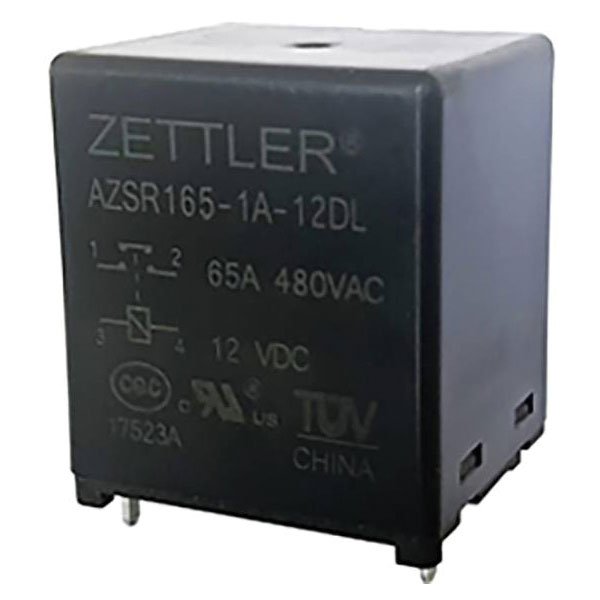

Zettler Electronics AZSR165-1A-12DL PCB Relay 12V DC 80A 1pc
Zettler Electronics AZSR165-1A-12DL PCB Relay 12V DC 80A 1pc
Extended range
Order code: 08-3723
MPN: AZSR165-1A-12DL

156 available to back orderBack-order availability date - 13/05/2026
1+ £17.15
Price per unit Ex VAT 		12V DC 65O 1NO 80A Solder pins AgNi monostable, 1 coil (L x W x H) 38 x 33 x 41.5 mm 1 x 10E6 10ms 41.5mm 38mm +85°C -40°C PCB 40ms 690V AC PCB relay 33mm
Zettler Electronics AZSR165-1A-24DL PCB Relay 24V DC 80A 1 Maker
Zettler Electronics AZSR165-1A-24DL PCB Relay 24V DC 80A 1 Maker
Standard range
Order code: 08-3724
MPN: AZSR165-1A-24DL

10 available to back orderBack-order availability date - 19/05/2026
1+ £17.45
Price per unit Ex VAT 		24V DC 262O 1NO 80A Solder pins AgNi monostable, 1 coil (L x W x H) 38 x 33 x 41.5 mm 1 x 10E6 10ms 41.5mm 38mm +85°C -40°C PCB 40ms 690V AC PCB relay 33mm
