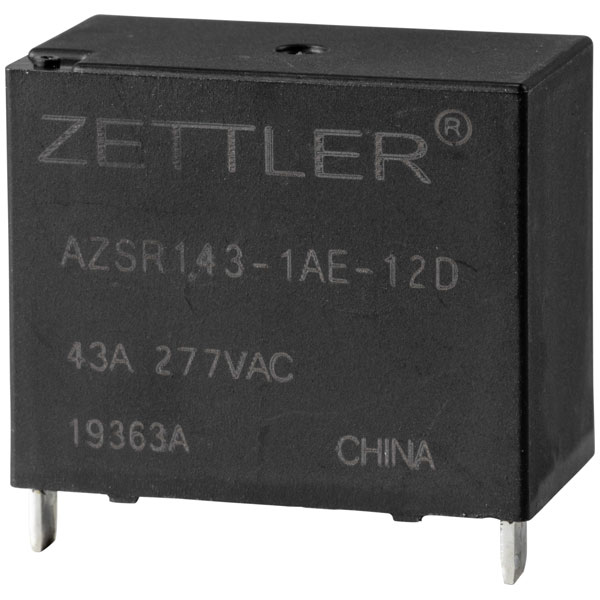

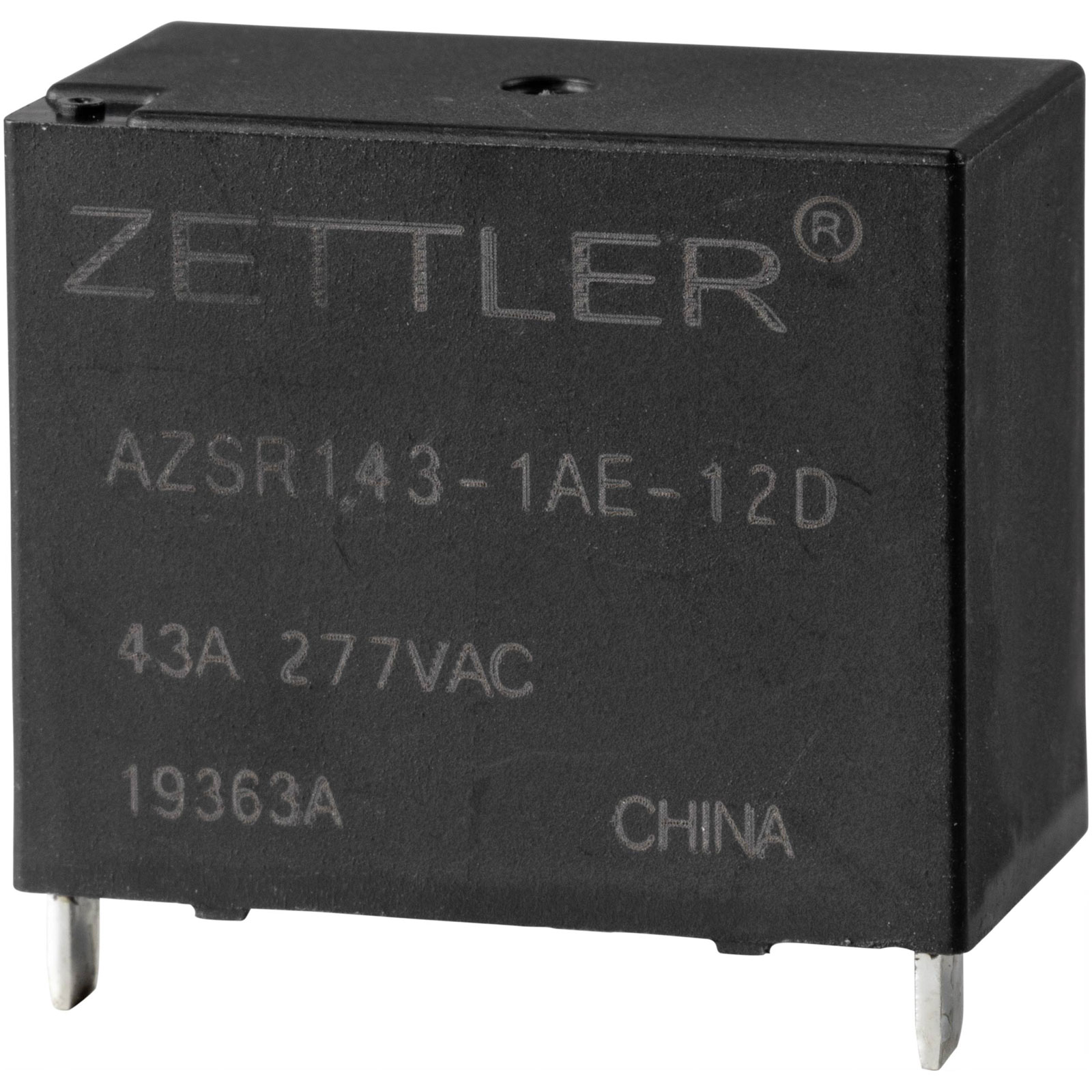

Zettler Electronics AZSR143-1AE-12D Power Relay 12V DC 50A 1 Maker 1pc

Zettler Electronics
Standard range
Order Code:

08-3721

Brand: Zettler Electronics MPN: AZSR143-1AE-12D
Qty Unit Price (Ex VAT)
1+ £5.54
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
496 in stock, despatched in 4 working days

The Zettler Electronics AZSR143-1AE-12D is a power relay designed for printed circuit board mounting, capable of handling 50 A with a 12 V DC coil. It is typically used in applications requiring dependable electrical switching, such as automotive or industrial control systems. This miniature relay offers durable performance in compact installations.
Height 27.9mm
Length 35mm
Type Power relay
Width 16mm
Coil nominal voltage 12V DC
Connection Pins
Contact material AgSnO2
Contact type 1 maker
Dim (L x W x H) 35 x 16 x 27.9 mm
Factory colour Black
Insulation voltage 277V AC
Max. pick-up voltage 14.4V DC
Max. switching capacity 13850VA
Max. temperature +85°C
Min. pick-up voltage 4.2V DC
Min. temperature -40°C
Misc Attribute Zettler electronics
Resistance (coil) 90Ω
RoHS-compliant Yes
Switching current (max.) 50A
Switching voltage (max.) 277V AC
Weight 25g
