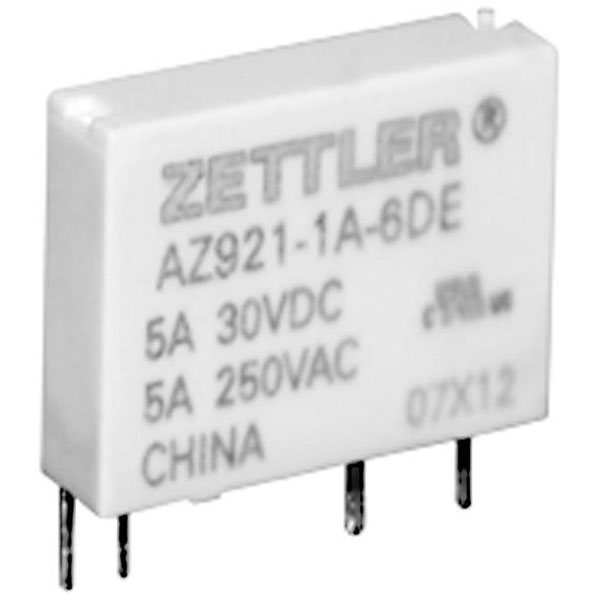

Zettler Electronics AZ921-1AE-12DEF PCB Relay 12V DC 5A 1pc

Zettler Electronics
Order Code:

08-3677

Brand: Zettler Electronics MPN: AZ921-1AE-12DEF EAN-13: 2050006598870
Qty Unit Price (Ex VAT)
3+ £1.73
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
670 available to back orderBack-order availability date - 01/05/2026

The Zettler Electronics AZ921-1AE-12DEF is a PCB mount relay designed for 12 V DC operation. It is a mini relay, ideal for applications requiring compact and efficient switching solutions on printed circuit boards. This relay is commonly used in electronic devices and control systems where reliable performance is crucial.
Coil Voltage 12V DC
Contact Configuration 1NO
Switching Current 5A
Coil Resistance 1200O
Contact Material AgSnO2
Control Mode monostable, 1 coil
Dimensions (L x W x H) 20.30 x 5.30 x 12.80 mm
Durability 2 x 10E7
Height 12.80mm
Length 20.30mm
Max. pick-up Voltage 39.8V DC
Max. switching capacity 150W
Max. temperature +85°C
Min. pick-up Voltage 8.4V DC
Minimum Temperature -40°C
Mounting Type PCB
Response Time 6ms
Switching Voltage Max 150V DC
Type PCB relay
Width 5.30mm
