X-Fan RAH1238S1-C Axial Fan 230V AC 180m³/h 120x120x38mm Sleeve

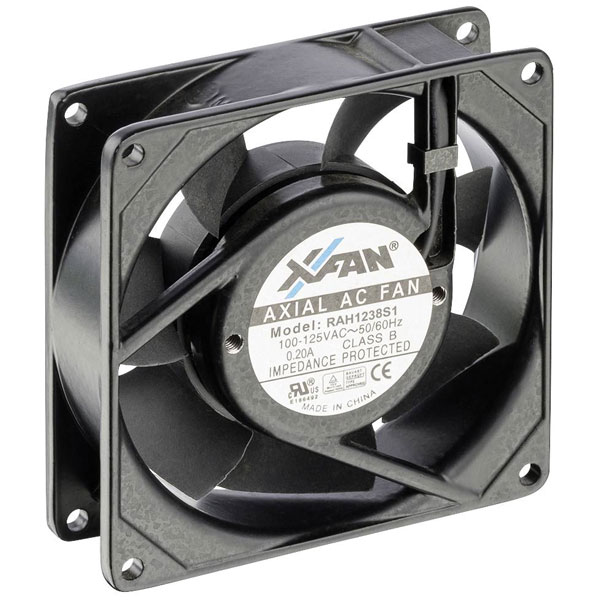

Image Representative of Range

X-Fan RAH1238S1-C Axial Fan 230V AC 180m³/h 120x120x38mm Sleeve

X-Fan
Standard range
Order Code:

11-1319

Brand: X-Fan MPN: RAH1238S1-C EAN-13: 4016138499575
Qty Unit Price (Ex VAT)
1+ £25.15
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

The X-Fan RAH1238S1-C axial fan operates at 230 V AC and offers a flow rate of 180 m³/h. Measuring 120 x 120 x 38 mm, it is ideal for improving heat dissipation in various industrial applications. Typically used for component cooling and heatsinks ventilation, it ensures efficient temperature management.
Type Axial fan
Air flow rate 180m³/h
Current consumption 110mAh
Dim (L x W x H) 120 x 120 x 38 mm
Factory colour Black
Height 38mm
Length 120mm
Material Metal
Material (details) Metal
Max. current consumption 110mA
Max. noise generation 43dBA
Misc Attribute 1 Plain bearing
Misc Attribute 2 RAH1238S1-C
Noise emission (max.) 43dB
Nominal RPM 2700 U/min
Nominal voltage 230V AC
Nominal voltage (details) 230 V/50 Hz
Output (max.) (details) 180m³/h
Rotational speed 2700 U/min
Type of bearing Plain bearing
Width 120mm
