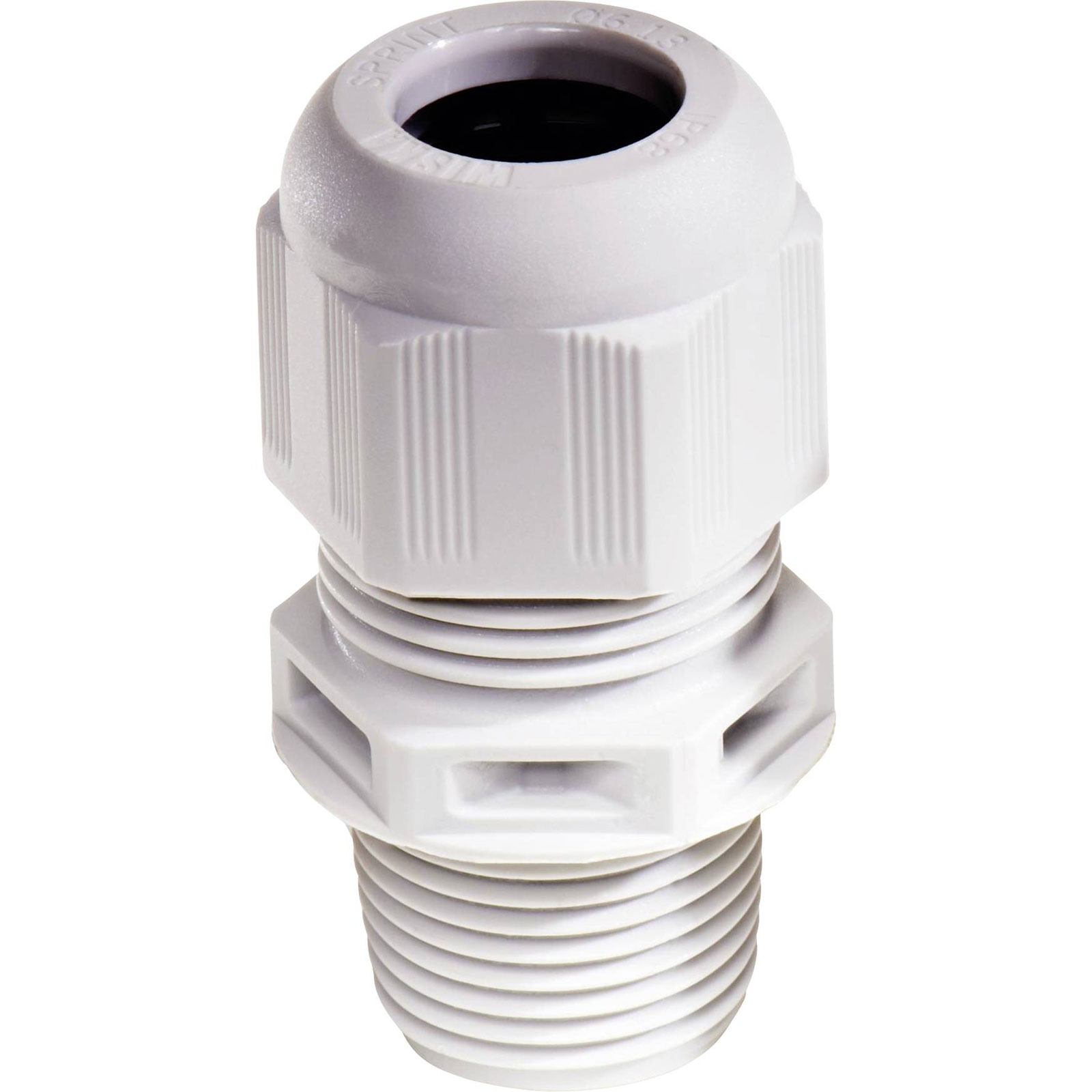

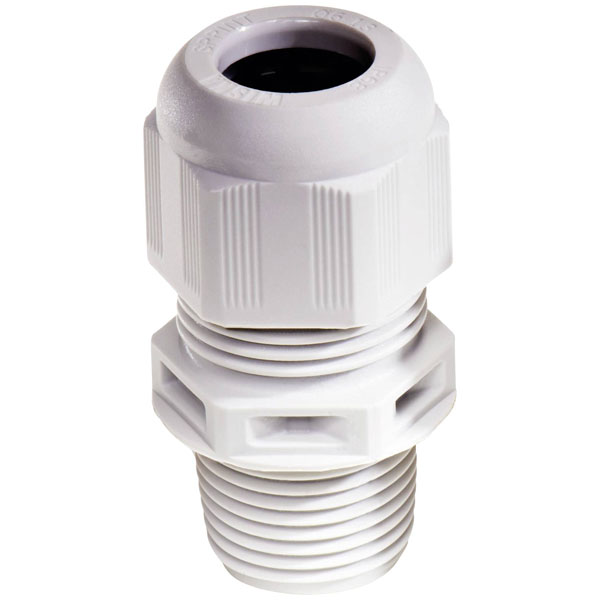

Wiska 10061435 Cable gland shockproof with strain relief NPT Polyamide Grey

Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing in sizes M12 to M32 by molded sealing lip, size M40 to M63 with threaded connection seal. All seals are made of silicone and are characterized by excellent resistance against water, ozone, UV radiation as well as chemicals and low temperatures. The self-locking cap nut thread offers optimum vibration protection and protection against overturning of the cap nut. A wide range of accessories is available within THE SPRINT® system for special applications.

Colour	Grey (RAL 7035)
Material	Polyamide
Type	Strain Relief
Clamp Ø	34mm
External thread	2'' NPT
Halogen free	Yes
Max. temperature	+100°C
Min. temperature	-60°C
Misc Attribute 2	straight
Spanner size	68mm
Terminal Ø (max.)	48mm
