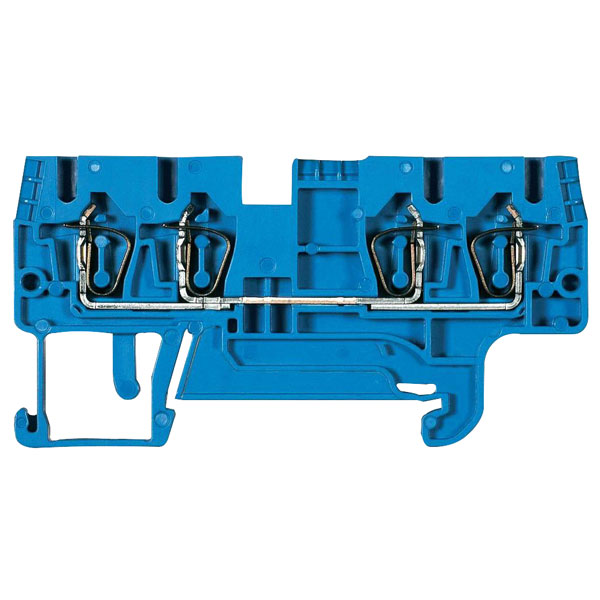

Wieland 56.703.5155.6 fasis Duo Feed-through DIN Block WKFN 2,5 D2/2/35 32A Blue

Wieland's blue fasis duo feed-through DIN block WKFN 2.5 D2/2/35 is a terminal block for mounting onto a TS 35 DIN rail and has been given an approved ATEX rating for use in various zones. The secure and maintenance-free tension spring clamp remains simple to operate via a standard screwdriver which can be held securely in the terminal for optimal handling while connecting wires.

The block has a 24A current rating, 800V rated voltage and is valid for fine-stranded wires with a cross section of 0.13–2.5mm², along with solid/stranded wires with a cross section of 0.13–4mm².

• Rated to Ex e I/II Ex II 2GD IM2
• 5 x 72 x 38mm (W x L x H)
• 11mm wire strip length
• Connect with or without ferrules
• Easy to wire front connection
• 1 level - 4 clamps
• PA 666 insulating housing
• Manufacturer's part 56.703.5155.6
