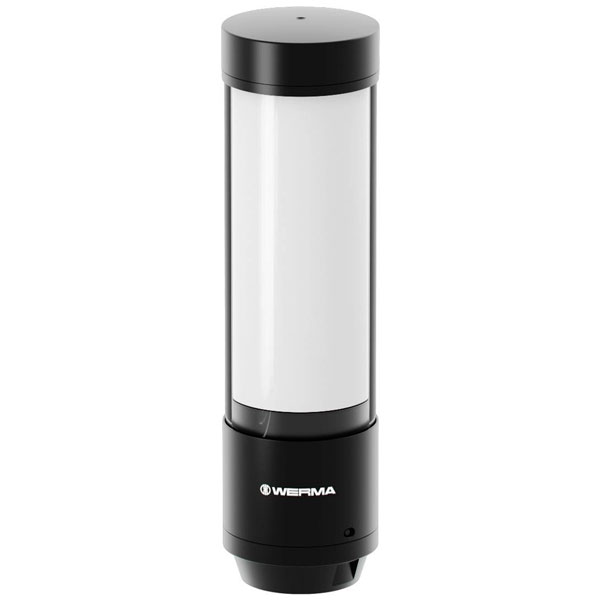

Werma 657.000.55 eSIGN LED Signal Tower UV Resistant Modular

Werma Signaltechnik manufactures the 657.000.55 eSIGN LED signal tower, which features advanced LED technology for effective visual signalling. This signal tower is ideal for use in industrial environments for indicating machine statuses or process steps. Known for its reliability and brightness, it helps improve safety and efficiency.

Type	Signal tower
Blink frequency	Configurable
Calotte Colour	Clear
Case Colour	Black
Conforms with AS-I	No
Conforms with ATEX-directive	No
Conforms with CCC	No
Conforms with CCC-Ex	No
Conforms with CE	Yes
Conforms with CMIM	No
Conforms with DNV	No
Conforms with FCC	No
Conforms with ISED	No
Conforms with RoHS CN	25 years
Conforms with RoHS directive	Yes
Conforms with TÜV	No
Conforms with UKCA (Importer)	Yes
Conforms with UL	cULus
Conforms with VdS	No
Connection	M12 plug 8-pole
Connectivity	Digital entrance; USB
Diameter	72mm
Dimensions	(Ø x H) 72 mm x 271 mm
Dome colour	Tranclucent
EAC certificate available	No
Height	271mm
Housing Colour	Black
IK-Code (IEC 62262)	IK08
Insulation Voltage	Ui = 50V / Uimp = 330V
Light colour	MC >1.000.000 colours
Light Source	LED
Material	PC
Materials	PC
Misc Attribute	eSIGN
MTTFd-value [years]	42
Operating Voltage	24v
Operating voltage tolerance	+/- 10%
Operating voltage type	DC
Optical signal image	Blink; Double flash; Flash; Permanent; Revolving; Triple flash
Overvoltage category	I
Pollution degree	3
Product Weight	568
Protection category	IP66; IP69K
Protection Class	Protection class 3
Rated inrush current	800ma
Rated operational current	335
Rated operational voltage	24vdc
Request to external PSU	SELV/PELV
Service life optical	50,000 h maximum
Supply Voltage	24V DC
Type of fixing	Base mounting; Tube mounting
UL Type Rating	Type 4/4X/12/13
WEEE	Yes
Weight with packaging	613
Working temperature maximum	+60°C
Working temperature minimum	-30°C
