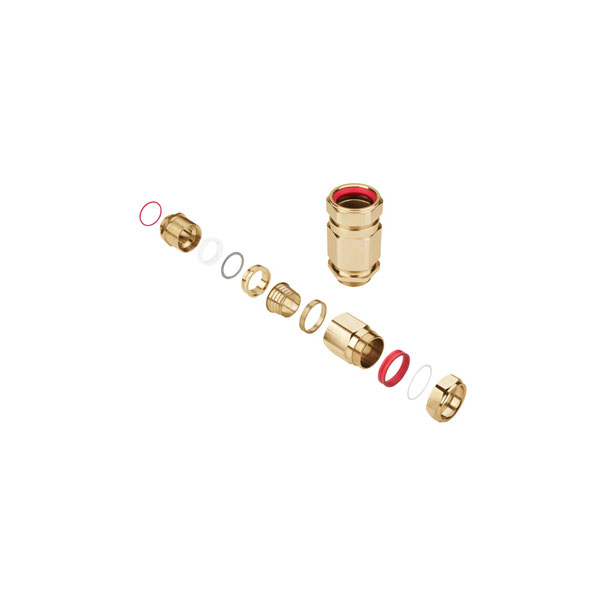

Weidmüller manufactures the 930041211 Cable Gland M32 Straight, known for its high quality and durability. The cable gland is engineered for secure and reliable sealing in various industrial and outdoor electrical applications. It is commonly used in machinery, control panels, and distribution boxes to ensure efficient cable management.
| Thread Size |
M32 |
| Colour |
Brass |
| Material |
Brass |
| Type |
Cable gland |
| AF size 1 |
46mm |
| AF size 2 |
46mm |
| also possible to connect non-armoured cables and lines. |
30.5 mm, ID min. 19.50 - ID max. 26.30 mm, |
| Alternative product |
E1W/32/M32-WM |
| Approval conditions |
ATEX, IECEX |
| Armour, max. |
2mm |
| Armour, min. |
0.1mm |
| Available until |
2023-07-30T00:00:00+02:00 |
| Basic material |
Brass |
| Cable gland |
metric, brass |
| Certificate No. (ATEX) |
SIRA05ATEX1285X |
| Certificate No. (IECEX) |
IECEXSIR05.0067X |
| Certificate no. cable gland (IECEx) |
IECEx CML 19.0109X |
| Delivery status |
Discontinued |
| ECLASS 14 |
27-14-08-04 |
| ECLASS 15.0 |
27-14-08-04 |
| ETIM 10 |
EC000441 |
| ETIM 8.0 |
EC000441 |
| ETIM 9.0 |
EC000441 |
| External thread |
M 32 |
| GTIN (EAN) |
4032248917952 |
| Halogen |
No |
| Height |
105mm |
| Height (inches) |
4.1338 inch |
| Identification |
ATEX: II 2G, Ex db IIC Gb, |
| Inner cable diameter, max. |
26.30mm |
| Inner cable diameter, min. |
19.50mm |
| Installation guidelines |
See assembly instructions |
| Length |
105mm |
| Length (inches) |
4.1338 inch |
| Length of thread |
16mm |
| Net weight |
750g |
| Operating Temperature |
-60 °C...180°C |
| Operating temperature range, max. |
180°C |
| Operating temperature range, min. |
-60°C |
| O-Ring |
Silicone |
| Outer cable diameter, max. |
30.5mm |
| Outer cable diameter, min. |
23.2mm |
| Pitch of thread |
1.5mm |
| Protection degree |
IP66, IP68 - 2.5 bar |
| Protection degree with GWDR |
IP66, IP68 - 2.5 bar |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
3394d55b-7892-488f-8603-ea218c1d0691 |
| Seal insert |
Silicone |
| Sealing |
Silicone |
| Size of protective cap |
EL46 |
| the inner and outer insulation. When the cable gland is |
Qty. |
| Type of armouring |
Single-wire armouring, |
| Type of armouring, short term |
SWA, STA, SWB |
| Version |
KDSU (Klippon double seal universal Ex cable |
| Water depth |
25 m (30 Min.) |
