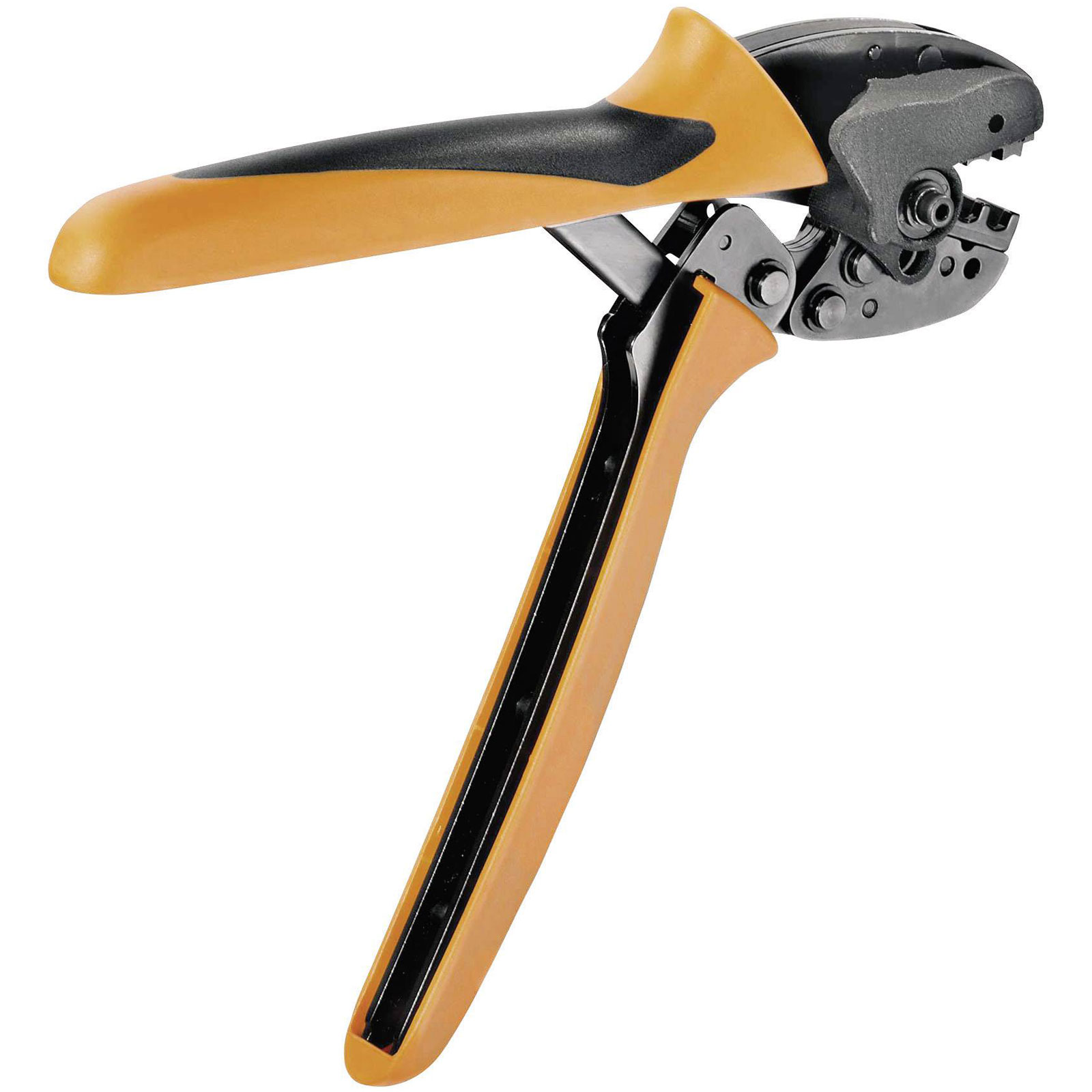

The Weidmüller CTI 6 G 9202850000 crimper is designed for insulated connectors, accommodating wire sizes from 0.5 to 6 mm². This precision crimping tool is ideal for ensuring secure and reliable electrical connections in various industrial and residential applications. Typical uses include creating durable connections in wiring harnesses, control cabinets, and electrical installations.
| Type |
Crimper |
| For Use With |
Insulated connectors |
| Length |
250mm |
| Compression shape |
Oval pressing |
| Conductor cross-section, max. AWG |
AWG 10 |
| Conductor cross-section, min. AWG |
AWG 21 |
| connectors, 0.5-6 mm² |
interchangeable inserts |
| Construction/operation |
Mechanical |
| Crimp area |
0.5 up to 6mm² |
| Crimp area (max.) |
6mm² |
| Crimp area (min.) |
0.5mm² |
| Crimp area AWG |
10 up to 21 awg |
| Crimp area AWG (max.) |
10AWG |
| Crimp area AWG (min.) |
21AWG |
| Crimping range, max. |
6mm² |
| Crimping range, min. |
0.5mm² |
| Crimping station |
Crimping station number |
| Crimping type/profile |
Oval crimping, Parallel crimp |
| Cross Section |
6 - 6 |
| Description of article |
Crimping tool for insulated |
| ECLASS 14 |
21-04-38-11 |
| ECLASS 15.0 |
21-04-38-11 |
| ETIM 10 |
EC000168 |
| ETIM 8.0 |
EC000168 |
| ETIM 9.0 |
EC000168 |
| GTIN (EAN) |
4032248517855 |
| Height |
170mm |
| Inserts exchangeable |
false |
| Material |
Steel |
| Net weight |
689.78g |
| Number of included inserts |
0 |
| Product information |
Not suitable for solid conductors. Insulation on the contact is pressed conically. |
| REACH SVHC |
Lead 7439-92-1 |
| RoHS Compliance Status |
Not affected |
| RoHS Compliant |
No |
| SCIP |
2159813b-98fd-4068-b62a-bc89a046c012 |
| Suitable For |
Cable lugs and connectors |
| Type of contact |
Insulated connector |
| Weight |
689.78g |
| Width |
250mm |
| Width (inches) |
9.8425 inch |
| Wire end ferrules cross-section, max. |
6mm² |
| With automatic return |
true |
| With locking device (for mechanical tools) |
true |
