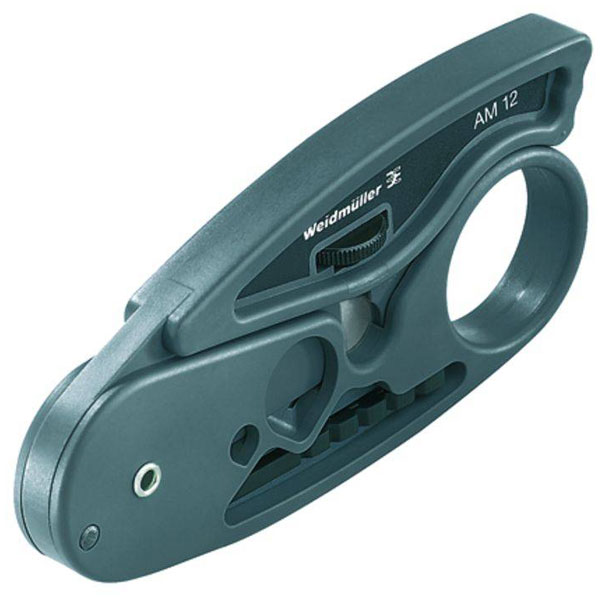

Weidmüller 9030060000 AM 12 Cable stripper for PVC UTP STP cables

The Weidmüller 9030060000 AM 12 cable stripper is designed for handling PVC-coated round cables, ribbon cables, and both UTP and STP data cables. It supports cables with diameters from 0.5 to 12.5 mm and a maximum cross-section of 4 mm². This tool is ideal for precise cable stripping in telecommunications and electrical installations.

Type	Cable stripper
Cable Type	UTP and STP data cables
Conductor cross-section, max.	122mm²
Conductor cross-section, min.	0.2mm²
Contains Lead	No
Copper cable - flexible, max.	4mm²
Cut Depth	adjustable
Depth	10mm
Depth (inches)	0.3937 inch
Depth of notch adjustable	true
Description of article	Sheathing stripper for UTP
ECLASS 14	21-04-90-90
ECLASS 15.0	21-04-90-90
ETIM 10	EC000163
ETIM 8.0	EC000163
ETIM 9.0	EC000163
Exchangeable knives	true
GTIN (EAN)	4008190337827
Height	105mm
Height (inches)	1.811 inch
Length	10mm
Longitudinal section	true
Max. conductor diameter	12.5mm
Min. conductor diameter	0.5mm
Mount	Cable
Net weight	32.42g
Operating range (AWG cross section) (max.)	11AWG
Operating range (AWG cross section) (min.)	18AWG
Operating range (AWG diameter)	11 up to 18 awg
Operating range (cross section) (max.)	4mm²
Operating range (diameter)	0.5 up to 12.5mm
Operating range (diameter) (max.)	12.5mm
Package Quantity	1
Qty.	1 items
Radiation Hardening	No
REACH SVHC	Lead 7439-92-1
RoHS Compliance Status	Not affected
Round edge	true
SCIP	cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0
Spiral cut	false
Strip range cross-section	0.2 - 122
Strip range diameter	0.5 - 12.5
Stripping range AWG, max.	11 AWG
Stripping range AWG, min.	18 AWG
Version	Tools, Sheathing strippers
Weight	32.42g
Width	97mm
Width (inches)	3.8189 inch
Wire/Cable Type	Data
Working area (cross section)	4 mm² (max)
Working area diameter (min.)	0.5mm
