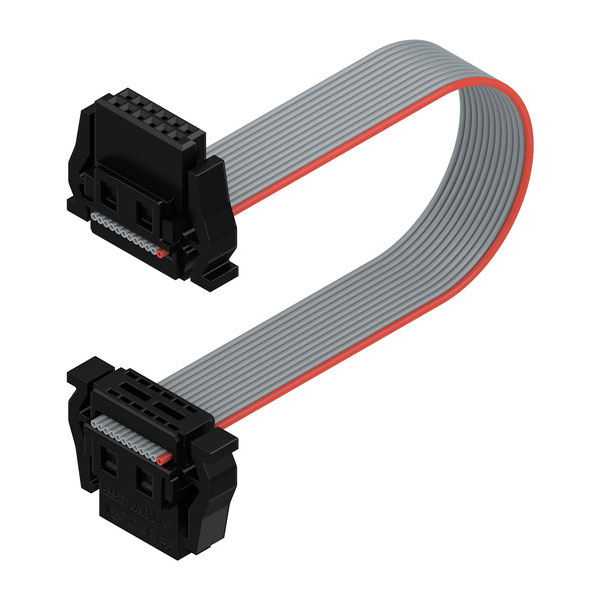

Weidmüller offers the 2826910000 SAI cable, featuring a 12-pole shrouded female connector designed for industrial automation. This robust connector ensures reliable signal transmission and protection against environmental factors. Typical applications include use in complex machinery and automation equipment where secure and efficient connectivity is essential.
| Colour |
Grey |
| Type |
Cable |
| Anti-kink sleeve |
None |
| Cable Length |
100mm |
| Cable Type |
Other |
| Clearance, min. |
0.4mm |
| Colour chart (similar) |
RAL 7035 |
| Colour outer sheath |
Grey |
| Conductor outlet direction |
90°/270° |
| Contact Base Material |
Copper alloy |
| Contact Material |
Cu-alloy |
| Contact surface |
Ni/Au |
| Creepage distance, min. |
0.4mm |
| Degree of protection (IP) |
IP20 |
| ECLASS 14 |
27-06-03-08 |
| ECLASS 15.0 |
27-06-03-08 |
| ETIM 10 |
EC002599 |
| ETIM 8.0 |
EC002599 |
| ETIM 9.0 |
EC002599 |
| Flame retardant |
No |
| GTIN (EAN) |
4064675363514 |
| Halogen free according to EN IEC 60754-1 |
false |
| Halogen free according to EN IEC 60754-2 |
false |
| Halogen free according to EN IEC 60754-3 |
false |
| Insulating material |
LCP |
| Insulation Resistance |
= 20 MO |
| IPC conformity |
Conformity: The products are developed, manufactured and delivered according international |
| Layer structure of plug contact |
= 2 µm Ni / = 0.4 µm |
| Maximum Operating Temperature |
125°C |
| min. |
max. |
| Minimum Operating Temperature |
-40°C |
| Moisture Level (MSL) |
1 |
| Net weight |
3.37g |
| Number of Poles |
12 |
| Number of Rows |
2 |
| Oil resistant according to EN IEC 60811-404 |
false |
| Packaging |
Box |
| Pin assignment |
Other |
| Pin series quantity |
2 |
| pitch and offer maximum flexibility due to different |
Product data |
| Pitch in inches (P) |
0.050 " |
| Pitch in mm (P) |
1.27mm |
| Plugging cycles |
500 |
| Plugging force/pole, max. |
0.6 N |
| Product family |
OMNIMATE Signal - Board- |
| Protection degree |
IP20 |
| Pulling force/pole, max. |
0.6 N |
| Qty. |
10 items |
| Rated current, min. number of poles |
1.9 A |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Suitable for cable guide chain |
false |
| to-Board |
connection (IDC) |
| Type of connection |
Insulation displacement |
| UL 94 flammability rating |
V-0 |
| Version |
PCB plug-in connector, female plug, Pitch inmm |
| Volume resistance |
<25 mO |
| VPE height |
24.00mm |
| VPE length |
127.00mm |
| VPE width |
89.00mm |
| Wire connection cross section AWG, |
AWG 30/1, 30/7 |
| Wire connection method |
IDC terminal |
