Weidmuller manufactures the 2717780015 single-core cable, which is PVC insulated, flexible, and has a 1.5mm² cross-sectional area, with a red sheath. This cable is designed for durability and flexibility in various wiring applications. It is suitable for both domestic and industrial electrical installations, providing reliable performance in standard environmental conditions.
| Length |
1.5 m |
| Type |
Cable |
| Anti-kink sleeve |
None |
| Bending cycles |
2 Mio |
| Cable construction |
2x2 |
| Cable Type |
SF/UTP |
| Category |
5E |
| Colour anti-kink sleeve |
Black |
| Colour coding |
white, yellow, blue, orange |
| Colour outer sheath |
Black |
| Degree of protection (IP) |
IP67 |
| ECLASS 14 |
27-06-03-08 |
| ECLASS 15.0 |
27-06-03-08 |
| ETIM 10 |
EC002599 |
| ETIM 8.0 |
EC002599 |
| ETIM 9.0 |
EC002599 |
| GTIN (EAN) |
4050118780185 |
| Halogen |
halogen-free, according to |
| Halogen free according to EN IEC 60754-1 |
false |
| Halogen free according to EN IEC 60754-2 |
false |
| Halogen free according to EN IEC 60754-3 |
false |
| Insulation |
Polyolefin |
| Length (inches) |
59.0551 inch |
| Material connector housing, connection 1 |
Plastic |
| Material connector housing, connection 2 |
Plastic |
| Net weight |
86.24g |
| Number of Poles |
4 |
| Number of wires |
4 |
| Oil resistant according to EN IEC 60811-404 |
true |
| Pin assignment |
Other |
| Plug left |
M8, P-coded, IP67, male |
| Plug right |
M8, P-coded, IP67, male |
| Protection degree |
IP67 |
| Qty. |
1 items |
| REACH SVHC |
Lead 7439-92-1 |
| Resistance to oils |
in accordance with IEC |
| Resistance to spread of flame |
Yes |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant |
| SCIP |
67cf1078-beca-4687-860b-dc475a6ec24a |
| Sheath material |
PUR |
| Sheathing colour |
black |
| Shielded |
Yes |
| Storage temperature |
Operating temperature |
| Suitable for cable carriers |
No |
| Suitable for cable guide chain |
false |
| Temperature range, moving |
-30...70°C |
| Temperature range, stationary |
-40...80°C |
| Test voltage: wire-wire-shield |
1 kV DC, 1 min, 1000 Veff, |
| Type of connector connection 1 |
Other |
| Type of connector connection 2 |
Other |
| Version |

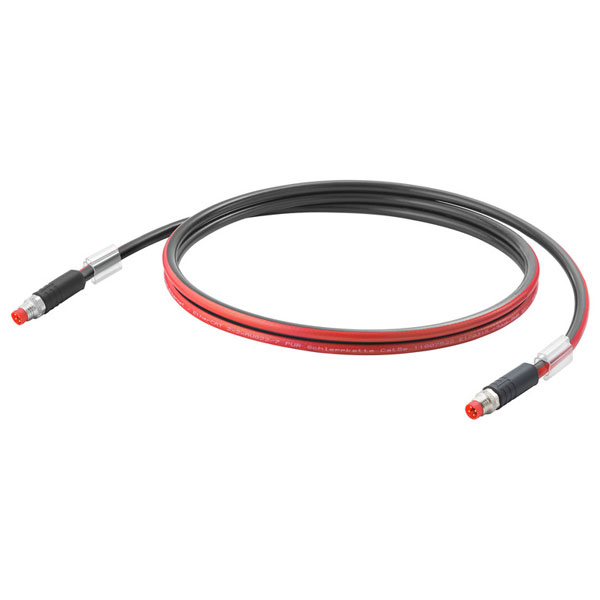

Dragline cable, M8 P-code - IP67 straight pin, M8 |
