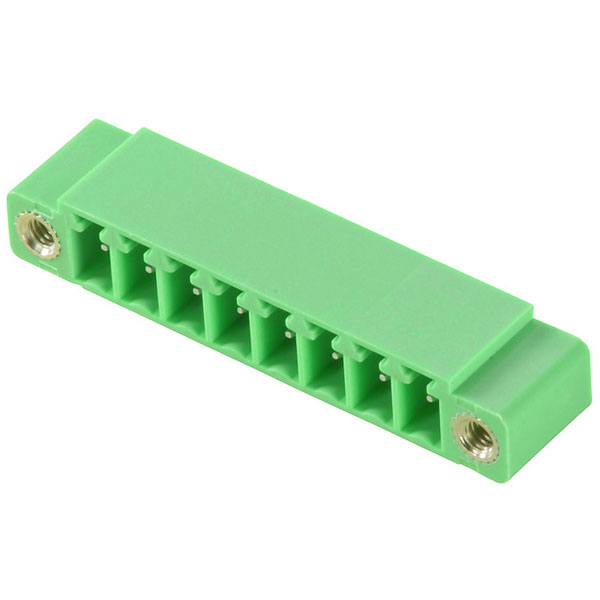

Weidmüller manufactures the 2643060000 connector, featuring an unshrouded female design with a 3.81mm pitch, suitable for PCB mounting. This component is commonly utilised in applications requiring secure and reliable electrical connections in industrial automation and control systems. Engineers might use it for environments demanding compact and precise wiring solutions, leveraging its robust design.
| Pitch |
3.81mm |
| No. of Rows |
1 |
| Colour |
Green |
| Wire Gauge (AWG) |
N/A |
| Wire Gauge (mm²) |
N/A |
| (Tu=20°C) |
pollution degree II/2 |
| Certificate No. (cURus) |
E60693 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Colour chart (similar) |
RAL 6021 |
| Contact Base Material |
Cu-alloy |
| Contact Material |
Cu-alloy |
| Contact surface |
tinned |
| ECLASS 14 |
27-46-02-01 |
| ECLASS 15.0 |
27-46-02-01 |
| ETIM 10 |
EC002637 |
| ETIM 8.0 |
EC002637 |
| ETIM 9.0 |
EC002637 |
| GTIN (EAN) |
4050118643916 |
| Institute (cURus) |
CURUS |
| Insulating material |
PA GF |
| Insulating material group |
I |
| L1 in inches |
0.450 " |
| L1 in mm |
11.43mm |
| Maximum Operating Temperature |
105°C |
| Minimum Operating Temperature |
-40°C |
| Moisture Level (MSL) |
UL 94 flammability rating |
| Mounting onto the PCB |
THT solder connection |
| Net weight |
1.92g |
| Notes |
•Only compatible with OMNIMATE basic products |
| Number of Poles |
4 |
| Number of Rows |
1 |
| Number of solder pins per pole |
1 |
| Outgoing elbow |
90° |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.150 " |
| Pitch in mm (P) |
3.81mm |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 320 V / 8 A |
| Product family |
OMNIMATE Signal - series |
| Qty. |
480 items |
| Rated current (Use group B / CSA) |
8 A |
| Rated current, min. number of poles |
8 A |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated current (Use group B / UL 1059) 8 A |
| REACH SVHC |
Lead 7439-92-1 |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
2f5e7231-4ad1-4dcb-8e0f-b14defbd9d78 |
| Solder eyelet hole diameter (D) |
1.3mm |
| Solder pin dimensions |
0.8 x 0.8 mm |
| Solder pin length (l) |
3.5mm |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Tinning type |
matt |
| Type |
CH 3.81/04/90F 3.5SN GN BX |
| Type of connection |
Board connection |
| UL File Number Search |
UL Website |
| VPE height |
50.00mm |
| VPE length |
169.00mm |
| VPE width |
135.00mm |
