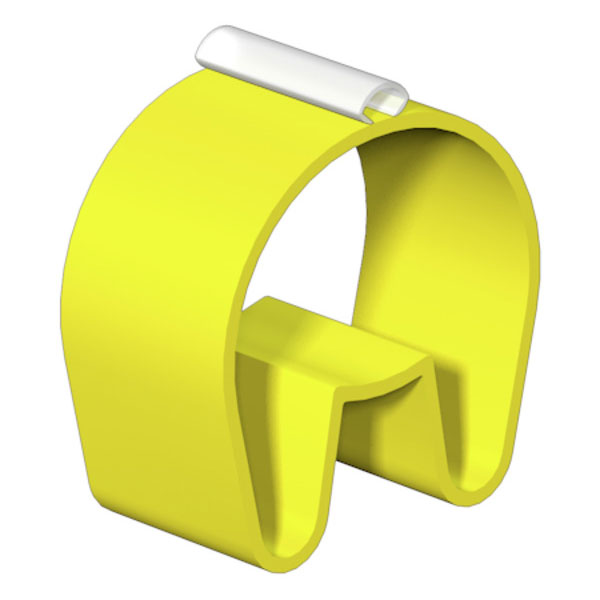

Weidműller 2633080000 Cable Coding System 24-35mm 5.3mm

Weidmüllers 2633080000 is a cable coding system designed for cables with diameters ranging from 24mm to 35mm and a marking width of 5.3mm. This system is ideal for clear and durable cable labelling in industrial environments, ensuring efficient identification and organisation of wiring systems. Typical applications include electrical installations where precise and reliable cable coding is required.

Type	Cable coding system
Colour	Yellow
Material	Plastic
Basic material	Polyester, TPU
Cable Diameter	24 - 35
Conductor cross-section, max.	70mm²
Conductor cross-section, min.	25mm²
Conductor O.D.	24 - 35mm
Conductor O.D., max.	35mm
Conductor O.D., min.	24mm
Core diameter	25 - 70
Cross-section for connected wire	25 - 70mm²
Depth	37.19mm
Depth (inches)	1.4642 inch
ECLASS 14	27-28-11-02
ECLASS 15.0	27-28-11-02
ETIM 10	EC001530
ETIM 8.0	EC001530
ETIM 9.0	EC001530
GTIN (EAN)	4050118695144
Halogen	No
Height	18mm
Height (inches)	0.7087 inch
Imprint	None
Length	18
Net weight	1.55g
Operating Temperature Range	-30...90°C
Operating temperature range, max.	90°C
Operating temperature range, min.	-30°C
Printed characters	without
REACH SVHC	No SVHC above 0.1 wt%
Recommended industries	Transportation, Machinery
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Transparent	false
Type of printing	neutral
UL 94 flammability rating	V-0
Version	, Socket x 5.3 mm, Polyester, TPU, Colour: yellow,
Width	5.3
Width (inches)	0.2087 inch
With label space	true
