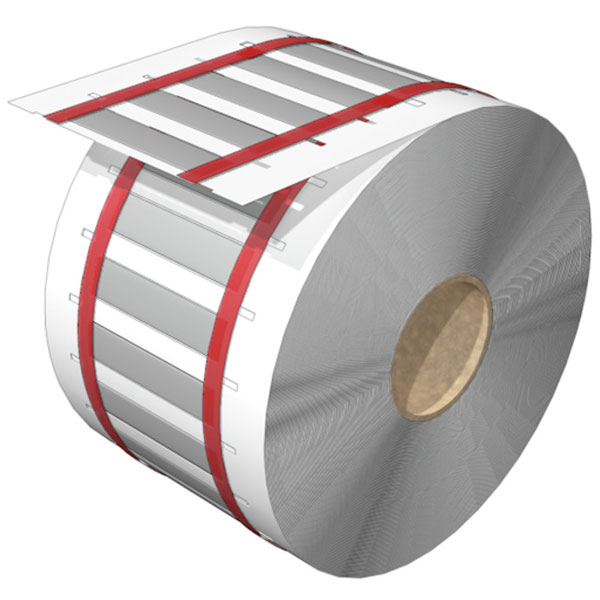

Weidműller 2621800000 Cable Coding System 32-64mm 103mm

Weidmüllers 2621800000 cable coding system is designed for cable diameters of 32-64mm and has a length of 103mm. It is ideal for ensuring accurate and efficient cable identification in complex wiring systems. Applications typically include industrial and automation environments where reliable and clear cable labelling is critical.

Type	Cable coding system
Colour	white
Alternative product	HS-HF 3.2-6.4/50 MM W
Available until	2025-08-31T00:00:00+02:00
Basic material	Polyolefine
compatible printer	THM MULTIMARK, THM
Conductor cross-section, max.	6mm²
Conductor cross-section, min.	1.5mm²
Conductor O.D.	3.2 - 6.4mm
Conductor O.D., max.	6.4mm
Conductor O.D., min.	3.2mm
Cross-section for connected wire	1.5 - 6mm²
Delivery status	This article will no longer be available in the future.
Depth	0.77mm
Depth (inches)	0.0303 inch
ECLASS 14	27-28-11-02
ECLASS 15.0	27-28-11-02
ETIM 10	EC001530
ETIM 8.0	EC001530
ETIM 9.0	EC001530
GTIN (EAN)	4050118625240
Halogen	No
Height	49.8mm
Height (inches)	1.9606 inch
Net weight	0.6g
Number per roll	1000
Operating Temperature Range	-55...125°C
Operating temperature range, max.	125°C
Operating temperature range, min.	-55°C
Printed characters	without
Rate of shrinkage	2:1
REACH SVHC	No SVHC above 0.1 wt%
Recommended shrinking temperature	90°C
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Size of labelling field	10.3 x 49.8 mm
Type of printing	neutral
Version	Conductor and cable markers, 3.2 - 6.4 mm, 49.8
Width	10.3mm
Width (inches)	0.4055 inch
