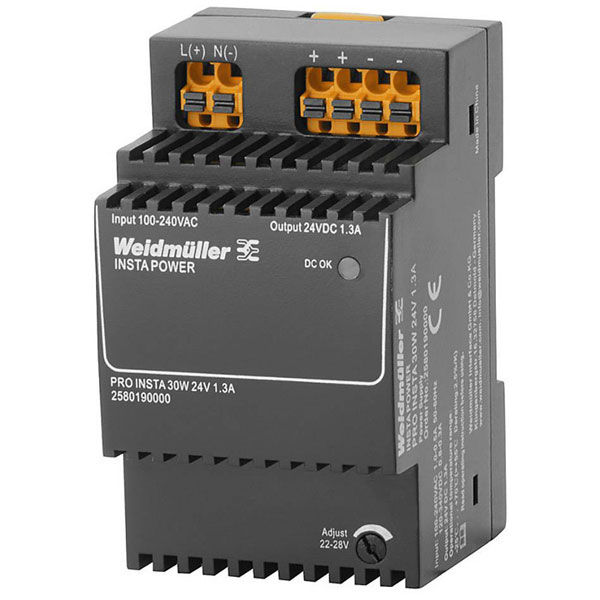

The Weidmüller PRO INSTA 30W 24V 1.3A SMPSU is a DIN rail mounting power supply unit, delivering 24 V DC at 1.3 A with a total output of 30 W. It is typically used in industrial applications for reliable and efficient power supply in automation systems. This product is designed for easy integration and ensures stable performance in demanding environments.
| Type |
SMPSU |
| Output Voltage |
24V DC |
| Output Current |
1.3A |
| Power Rating |
30W |
| 1st secondary output voltage |
24 - 24 |
| AC current consumption |
0.5 A @ 230 V AC / 1.0 A |
| AC input voltage range |
85...264 V AC (derating at |
| Capacitive load |
unrestricted |
| Certificate no. (cULus) |
E258476 |
| Conductor cross-section, AWG/kcmil , 12 AWG |
Conductor cross-section, AWG/kcmil , 24 AWG |
| Conductor cross-section, flexible , max. 2.5 mm² |
Conductor cross-section, flexible , min. 0.25mm² |
| Conductor cross-section, rigid , max. |
2.5mm² |
| Conductor cross-section, rigid , min. |
0.25mm² |
| Connection |
Push-in connector |
| currents |
EN 61000-4-3 and EN |
| DC current consumption |
0.2 A @ 370 V DC / 0.5 A |
| DC input voltage range |
95…370 V DC |
| Degree of efficiency |
86% |
| Degree of protection (IP) |
IP20 |
| Depth |
60 |
| Depth (inches) |
2.3622 inch |
| Dim |
(L x W x H) 60 x 54 x 90 mm |
| Direct mounting possible |
false |
| ECLASS 14 |
27-04-07-01 |
| ECLASS 15.0 |
27-04-07-01 |
| Efficiency |
86% |
| Electrical machine equipment |
Acc. to EN60204 |
| EN55032 |
EN 61000-4-3 and EN |
| ETIM 10 |
EC002540 |
| ETIM 8.0 |
EC002540 |
| ETIM 9.0 |
EC002540 |
| Frequency range AC |
45…65 Hz |
| GTIN (EAN) |
4050118590920 |
| Height |
90mm |
| Height (inches) |
3.5433 inch |
| Housing version |
Plastic, protective |
| Input fuse (internal) |
Yes |
| Input Voltage |
85 - 264 V/AC, 95 - 370V DC |
| Inrush current |
max. 40 A |
| Insulation voltage input / earth |
3.5 kV |
| Insulation voltage output / earth |
0.5 kV |
| Insulation voltage, input/output |
4 kV |
| Interference immunity test acc. to |
EN 61000-4-2 (ESD)/ |
| IP Rating |
IP20 |
| LED green |
Operating voltage OK |
| Length |
60mm |
| Limiting of mains voltage harmonic |
EN 61000-4-2 (ESD)/ |
| max. |
min. |
| Max. operating temperature (derating) |
+70°C |
| Max. output current |
1.3A |
| Max. output current 1 |
1.3 |
| Max. temperature |
+70°C |
| Min. operating temperature (derating) |
-25°C |
| Min. temperature |
-25°C |
| Misc Attribute |
PRO INSTA 30W 24V 1.3A |
| Mounting position, installation notice |
Horizontal on DIN rail |
| MTBF |
750000h |
| Net weight |
192g |
| Noise emission in accordance with |
Class B |
| Nominal output current for Unom |
1.3 A @ 55°C |
| Nominal power consumption |
34.9 VA |
| Nominal value output current 1 |
1.3 |
| Nominal value output voltage 1 |
24 |
| Operating Temperature |
-25 °C...70°C |
| Operating temperature (max.) |
+70°C |
| Operating temperature (min.) |
-25°C |
| Output current, max. |
1.3 A |
| Output Power |
30 W |
| Output voltage stabilized |
true |
| Output voltage, max. |
28 V |
| Output voltage, min. |
22 V |
| Output voltage, note |
(adjustable via |
| Performance level according to EN ISO 13849-1 |
None |
| Phases |
1 |
| Pollution severity |
2 |
| Power Consumption |
34.9 |
| Power loss, nominal load |
4.88 W |
| Power Output |
30 |
| power supplies |
61558-2-16 |
| Protection against reverse voltages from 30…35 V DC |
Power loss, idling |
| Protection Class |
II |
| Protection degree |
IP20 |
| Ramp-up time |
= 100 ms |
| Rated input voltage |
110...240 V AC / |
| Rated output voltage |
24 V DC ± 1 % |
| Rated supply voltage AC 50 Hz |
100 - 240 |
| Rated supply voltage AC 60 Hz |
100 - 240 |
| Rated supply voltage DC |
120 - 340 |
| REACH SVHC |
Lead 7439-92-1, Lead monoxide 1317-36-8 |
| Recommended back-up fuse |
2 A / DI, safety fuse |
| Residual ripple, breaking spikes |
<50 mVss @ UNenn, Full |
| ROHS |
Yes |
| RoHS Compliance Status |
Compliant with exemption |
| RoHS Version |
2011/65/EU |
| Safety extra-low voltage |
SELV acc. to IEC |
| Safety transformers for switch-mode |
According to EN |
| SCIP |
d62541f7-8058-4336-b693-7303c8b40800 |
| Secondary voltage adjustable |
true |
| Shock resistance IEC 60068-2-27 |
15 g In all directions |
| Short-circuit protection |
Yes, internal |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
None |
| Stabilized |
true |
| Start-up |
= -40°C |
| Storage temperature |
-40 °C...85°C |
| Suitable for distribution board |
true |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
false |
| TS 35, top and bottom |
insulation |
| UL File Number Search |
UL Website |
| Version |
Power supply, switch-mode power supply unit, 24 |
| Vibration resistance IEC 60068-2-6 |
2.3 g |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
true |
| Weight |
192g |
| Width |
54mm |
| Width (inches) |
2.126 inch |
| Wire connection cross section, flexible 2.5 mm² |
Conductor cross-section, flexible , min. 0.25mm² |
| Wire connection method |
PUSH IN with actuator |
