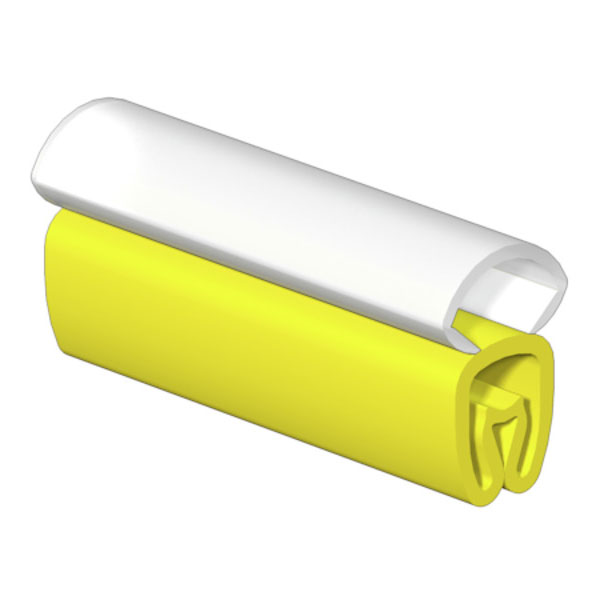

Weidműller 2571300000 Cable Coding System 2.5-5mm 5.3mm

Weidmüllers cable coding system 2571300000 is designed for cables with diameters between 2.5 mm and 5.3 mm. It provides clear and durable identification for cable management in electrical installations. Typical applications include industrial automation and control systems where precise cable identification is essential.

Type	Cable coding system
Colour	Yellow
Material	Plastic
Basic material	Polyester, TPU
Cable Diameter	2.5 - 5
Conductor cross-section, max.	1.5mm²
Conductor cross-section, min.	0.5mm²
Conductor O.D.	2.5 - 5mm
Conductor O.D., max.	5mm
Conductor O.D., min.	2.5mm
Core diameter	0.5 - 1.5
Cross-section for connected wire	0.5 - 1.5mm²
Depth	8.2mm
Depth (inches)	0.3228 inch
ECLASS 14	27-28-11-02
ECLASS 15.0	27-28-11-02
ETIM 10	EC001530
ETIM 8.0	EC001530
ETIM 9.0	EC001530
GTIN (EAN)	4050118608380
Halogen	No
Height	18mm
Height (inches)	0.7087 inch
Imprint	None
Length	18
Net weight	0.21g
Operating Temperature Range	-30...90°C
Operating temperature range, max.	90°C
Operating temperature range, min.	-30°C
Printed characters	without
REACH SVHC	No SVHC above 0.1 wt%
Recommended industries	Transportation, Machinery
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Transparent	false
Type of printing	neutral
UL 94 flammability rating	V-0
Version	, Socket x 5.3 mm, Polyester, TPU, Colour: yellow,
Width	5.3
Width (inches)	0.2087 inch
With label space	true
