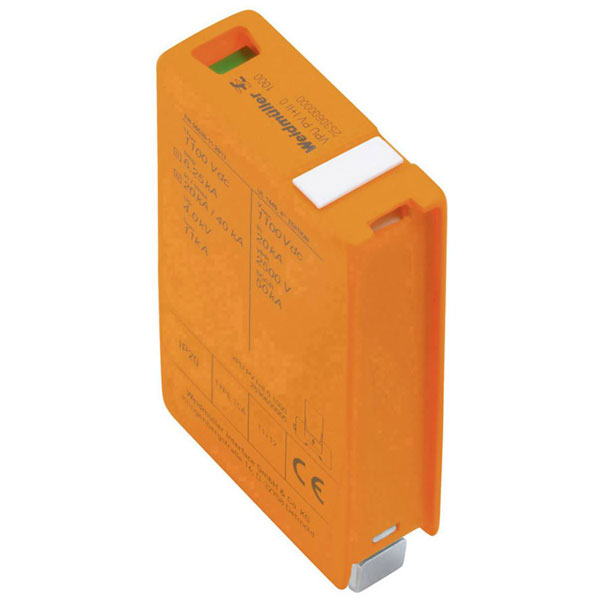

The Weidmüller surge arrester, model number 2530530000, is a plug-in device designed to handle up to 20 kA of surge current protection. It is particularly suitable for photovoltaic systems, providing critical protection against voltage spikes. This component ensures reliability and safety in solar energy installations.
| Type |
Surge arrester (plug-in) |
| Colour |
orange |
| Degree of protection (IP) |
IP20 |
| Depth |
63mm |
| Depth (inches) |
2.252 inch |
| Design |
Installation housing; 1TE |
| Dim |
(W x H x D) 18 x 45 x 63 mm |
| ECLASS 14.0 |
27-17-14-03 |
| ECLASS 15.0 |
27-17-14-03 |
| Energy coordination (=10 m) |
Type I, Type II, Type III |
| Energy-coordinated protection effect with regard to the terminal equipment |
true |
| ETIM 10.0 |
EC001457 |
| ETIM 8.0 |
EC001457 |
| ETIM 9.0 |
EC001457 |
| Factory colour |
Orange |
| Fuse protection |
No |
| GTIN (EAN) |
4050118540741 |
| GTIN (EAN) 4050118897050 |
thickness (A): 1mm |
| Height |
45mm |
| Height (inches) |
1.7716 inch |
| Humidity |
5 - 95% rel. humidity |
| Integrated backup fuse |
false |
| Integrated back-up fuse |
No |
| IP Rating |
IP20 |
| is defective - replace |
Spare arrester |
| Leakage Current |
20kA |
| Leakage current at Un |
30 µA |
| Lightning impulse current (10/350 µs) |
5 |
| Max. conductor cross section flexible (fine-strand) |
35 |
| Max. conductor cross section solid (solid, stranded) |
35 |
| Max. continuous voltage DC |
1100 |
| Max. PV-voltage |
1100 |
| Misc Attribute |
Type I/II |
| Mounting method |
DIN rail (top hat rail) 35mm |
| Net weight |
9.44g |
| Nominal voltage DC |
1000 |
| Number of Poles |
1 |
| Operating altitude |
= 4000 m |
| Operating height in the grounded PV |
= 2000 m |
| Operating Temperature |
-40 °C to +70°C |
| Optical function display |
green = OK; red = arrester |
| Overcurrent protected voltage tapping |
false |
| Pollution severity |
2 |
| Protection degree |
IP20 |
| Protection level Up (+/- , -/PE , +/PE) |
= 3.8 kV |
| PV system voltage, max. Ucpv |
1100 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Remote signalling |
false |
| Requirements class |
Type I/II |
| Response time / fallback time |
= 25 ns |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Short-circuit curent ISCPV |
11000 A |
| Signalling at the device |
Optical |
| Signalling contact |
No |
| SPD type |
T1, T2 |
| Specific energy (W/R) |
9.77 |
| Standards |
EN 50539-11:2013 + A1:2014, UL 1449 Ed. 4 |
| Storage temperature |
-40 °C...85°C |
| Stripping length |
18mm |
| Surge voltage category |
III |
| System configuration IT |
false |
| System configuration TN |
false |
| System configuration TN-C |
false |
| System configuration TN-C-S |
false |
| System configuration TN-S |
false |
| System configuration TT |
false |
| Test class |
Type 1 + 2 |
| Time interval |
5 years |
| Total discharge current Itotal |
6.25 kA |
| Total discharge current Itotal ( 8/20µs) 50 kA |
Discharge current In (8/20 µs) |
| Type of connection |
pluggable |
| UL 94 flammability rating |
V-0 |
| Voltage protection level |
3800 |
| Voltage protection level (DC+ - DC-) |
3800 |
| Voltage protection level (DC+/DC- - PE) |
3800 |
| Voltage Rating |
1000V |
| Voltage switching spark gap technology |
true |
| Voltage type |
DC |
| Width |
18mm |
| Width (inches) |
0.7087 inch |
| Wire connection cross section, finely |
35mm² |
| Wire cross-section, solid, max. |
35mm² |
| Wire cross-section, solid, min. |
1.5mm² |
