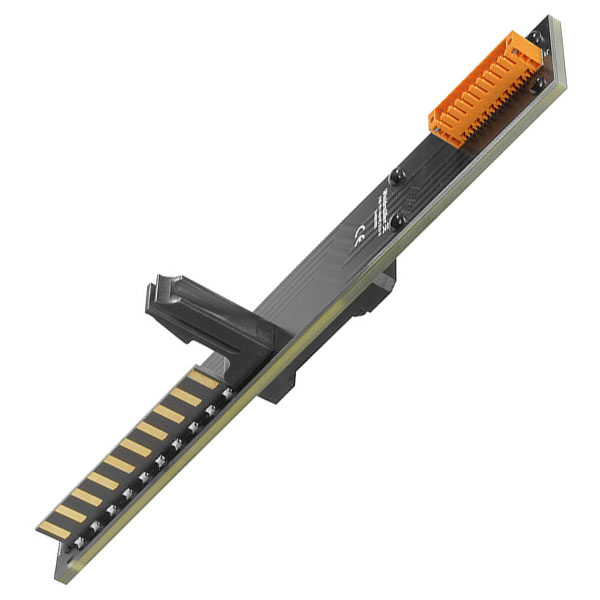

Weidműller 2448650000 Terminal Block Unshrouded For Electronics

Weidmüllers terminal block 2448650000 is designed for seamless integration in electronic circuits, featuring an unshrouded design for easy access and connection. It is ideal for applications requiring efficient and reliable electrical connections in industrial and commercial electronics. Typically used in control panels and machinery, this component ensures consistent performance and durability.

According to	DIN EN 50178
Alternative product	FAD 1771-WA/WC SL10 M US
Connection to PLC	SL 3.5/F 10p connector
Delivery status	Discontinued
Depth	53mm
Depth (inches)	2.0866 inch
ECLASS 14	27-33-02-92
ECLASS 15.0	27-33-02-92
ETIM 10	EC002584
ETIM 8.0	EC002584
ETIM 9.0	EC002584
GTIN (EAN)	8430243333931
Height	269mm
Height (inches)	10.5905 inch
Insulation test voltage AC	1.2 kV
Length	269mm
Length (inches)	10.5905 inch
Max. current per channel	2 A
Net weight	158g
Operating Temperature	0...50°C
Pollution severity level	2
Qty.	1 items
Rated insulation voltage	< 300 V AC
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Storage temperature	0...50°C
Surge voltage category	II
Total operating current	8 A
Type	Terminal block
Width	32mm
Width (inches)	1.2598 inch
