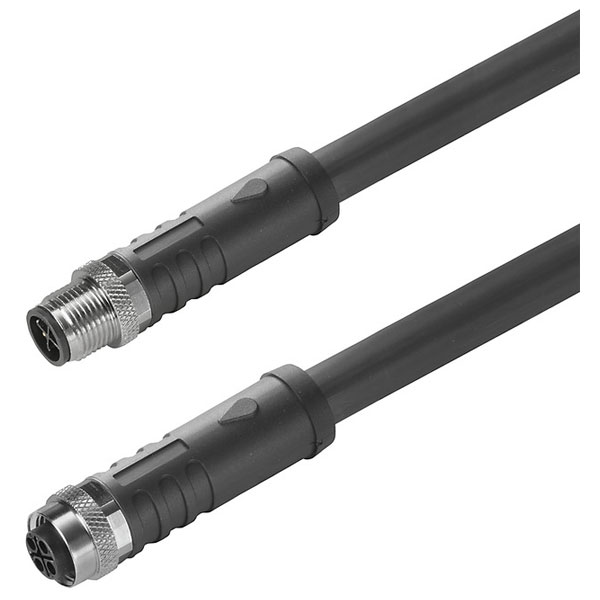

Weidműller 2050270100 M12 Cable Connecting Line Male Shrouded

Weidmüllers 2050270100 M12 cable connecting line features a male shrouded connector designed for secure and efficient data transmission. The robust construction makes it suitable for harsh industrial environments. It is commonly used in automation and control applications.

Acceleration	5 m/s²
AF size	13mm
Bending cycles	10 Mio
Bending radius, min., moving	7.5 x cable diameter
Bending radius, min., stationary	4 x cable diameter
Cable Length	1 m
Cable Type	Multi-core
Certificate no. (cULus)	E310075
Coding	S-coded
Colour	Black
Colour coding	grey, black, brown, Green/
Configurable cable length	No
Connection thread	M12 / M12
Contact surface	Gold-plated
Continuity resistance	0
Core cross-section	1.5mm²
Degree of protection (IP)	IP67
ECLASS 14	27-06-03-11
ECLASS 15.0	27-06-03-11
ETIM 10	EC001855
ETIM 8.0	EC001855
ETIM 9.0	EC001855
GTIN (EAN)	4050118747188
Halogen	No
Halogen free	true
Housing main material	PUR
Insulation	PP
Insulation Resistance	108 O
Irradiation crosslinked	No
LED	No
Length	1
Material of cable sheath	Polyurethane (PUR)
Material of contact surface	Gold
Net weight	135.52g
Nominal Current	12 A
Nominal Voltage	600 V
Number of Poles	4
Outer cladding in accordance with UL	20234 (80 °C / 1000 V)
Outside Diameter	9.6 mm ± 0.3mm
PE function	Yes
Permitted cable outer temperature after assembling without vibration	-50 - 80
Permitted cable outer temperature during assembling/handling	-40 - 80
Plug left	M12, S-coded, IP67, male
Plug right	M12, S-coded, IP67,
Plugging cycles	= 100
Pollution severity	3
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Protection degree	IP67, when screwed in
Qty.	1 items
Rated current In	12
Rated voltage	600
REACH SVHC	Lead 7439-92-1
Resistant to welding beads	No
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	e8d8af70-4c85-4483-bc8c-9bc5b598e2a9
Screened	false
Sheath material	PUR
Sheathing colour	black
Shielded	No
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range of housing	-40 … +85 ° C
Temperature range, moving	-40...80°C
Temperature range, stationary	-50...80°C
Tightening torque	M12: 1.0 Nm
Type	Power Cable
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Male (plug)
Type of plug-in contact, field sided	Female (bus)
UL File Number Search	UL Website
Vulcanized	false
Welding spark resistance	No
Wiring diagram	The ideal tool: Screwty ® with torque function
With LED indication	false
