Weidműller 1951050000 Connector Female Shrouded 7.62mm

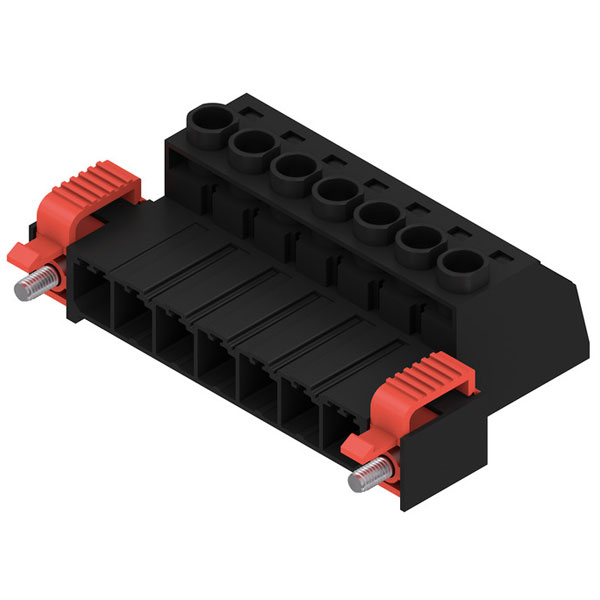

Weidmüller SVZ 7.62HP/07/180SFC SN BK BX is a PCB connector (wire connection), 1000 V, 57 A, Pitch in mm: 7.62, 6 mm², Number of poles: 7, Clamping yoke connection, Box. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.

Mounting Type	Through Hole
(Tu=20°C)	(Tu=40°C)
(Tu=40°C)	pollution degree II/2
57 106	0470
Angle contact/conductor connection	90° (upwards vertical)
Body Orientation	Right Angle
Can be coded	Yes
Certificate No. (CSA)	200039-1534443
Certificate No. (cURus)	E60693
Clampable conductor	Cross-section for conductor connection
Clamping range, max.	6mm²
Clamping range, min.	0.2mm²
Clamping screw	M 3
class/ pollution degree II/2	class/ pollution degree III/2
Clearance, min.	13.56mm
Coating housing	Uncoated
Colour	black
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	= 500
Conductor outlet direction	180°
Conductor type	Type of conductor
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 6
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10
Connectable conductor cross section solid-core	0.2 - 6
Contact Base Material	Cu-alloy
Contact Material	Cu-alloy
Contact surface	tinned
Contact Type	Pin
Creepage distance, min.	13.8mm
Cross-section for conductor connection	Type
Degree of protection (IP), mounted	IP20
Depth	47.28mm
Depth (inches)	1.8614 inch
ECLASS 14.0	27-46-02-02
ECLASS 15.0	27-46-02-02
ETIM 10.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
Flexible, max. H05(07) V-K	10mm²
Flexible, min. H05(07) V-K	0.5mm²
Gender	M
Graph	Graph
GTIN (EAN)	4032248629954
GTIN (EAN) 4032248608836	of poles: 2
GTIN (EAN) 4032248608843	of poles: 4
GTIN (EAN) 4032248608881	of poles: 1
Height	23.1mm
Height (inches)	0.9094 inch
Housing Colour	Black
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
Institute (CSA)	CSA
Institute (cURus)	CURUS
Insulating material	PA GF
Insulating material group	II
interchangeability)	DIN EN 60512-13-5 / 11.08
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	1.800 "
L1 in mm	45.72mm
Layer structure of plug contact	4...6 µm Sn glossy
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
Max Current Rating	42A
Max Operating Temperature	125°C
Max Voltage Rating	600V
Min Operating Temperature	-50°C
Modular spacing connections	7.62
Modular spacing contacts	7.62
Mounting	Cable Mount
Net weight	36.79g
Notes	•Additional variants on request
Number of Contacts	7
Number of Poles	7
Number of Rows	1
Operating Temperature	-50 - 125
Operating temperature, max.	125°C
Operating temperature, min.	-50°C
Overvoltage category	III
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.300 "
Pitch in mm (P)	7.62mm
Plug gauge in accordance with EN	2.8 mm x 2.0 mm; 2.4 mm
Plugging cycles	25
Pollution degree	2
pollution degree III/2	pollution degree III/3
Product data	IEC: 1000 V / 57 A / 0.2 - 10mm²
Product family	OMNIMATE Power - series
Product image	Dimensional drawing
Protection degree	IP20
Pull-out test	Standard
Rated cross-section	6mm²
Rated current (Use group B / CSA)	35 A
Rated current (Use group C / CSA)	35 A
Rated current (Use group C / UL 1059) 42 A	Rated current (Use group D / UL 1059) 5 A
Rated current (Use group D / CSA)	5 A
Rated current In	41
Rated current, max. number of poles	41 A
Rated impulse voltage for surge voltage 6 kV	Rated impulse voltage for surge voltage 8 kV
Rated impulse voltage for surge voltage 8 kV	Short-time withstand current resistance 3 x 1s with 420 A
Rated Surge Voltage	8
Rated voltage	1000
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group B / UL 1059) 600 V	Rated voltage (Use group C / UL 1059) 600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated voltage (Use group D / UL 1059) 600 V	Rated current (Use group B / UL 1059) 42 A
REACH SVHC	No SVHC above 0.1 wt%
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Screwdriver blade	0.6 x 3.5
Solid, max. H05(07) V-U	6mm²
Solid, min. H05(07) V-U	0.2mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Temperature range, installation, max.	125°C
Temperature range, installation, min.	-25°C
Terminal Pitch (mm)	7.62
Termination Method	Screw
Test for damage to and accidental	Standard
Test: Clampable cross section	Standard
Test: Durability of markings	Standard
Test: Misengagement (Non-	Standard
tested acc. to standard	IEC 60664-1, IEC 61984
Tightening torque for screw flange, min. 0.2 Nm	Tightening torque for screw flange, max.0.3 Nm
Tightening torque, max.	0.6 Nm
Tightening torque, min.	0.5 Nm
Type	PCB Connector
Type of connection	Flexible PCB-connector
Type of electric connection	Screw connection
UL 94 flammability rating	V-0
UL File Number Search	UL Website
Version	PCB plug-in connector, male plug, 7.62 mm, Num-
Volume resistance	4.50 mO
VPE height	88.00mm
VPE length	335.00mm
VPE width	150.00mm
Width	68.58mm
Width (inches)	2.7 inch
Wire connection method	Clamping yoke connection
Wire cross-section, AWG, min.	AWG 24
wire end ferrule	Stripping length
With protective conductor	false
