Weidműller 1933400000 Connector 7.62mm Male Shrouded

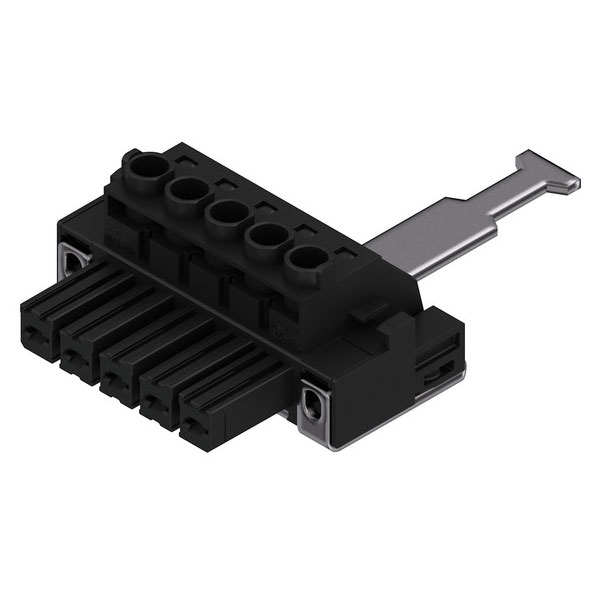

Weidmüller BVZ 7.62HP/05/180SH180C SN BK BX is a PCB connector (wire connection), 1000 V, 57 A, Pitch in mm: 7.62, 10 mm², Number of poles: 5, Clamping yoke connection, Box. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.

Mounting Type	Through Hole
(Tu=20°C)	(Tu=40°C)
(Tu=40°C)	pollution degree II/2
57 106	0470
Angle contact/conductor connection	90° (upwards vertical)
Body Orientation	Right Angle
Can be coded	Yes
Certificate No. (CSA)	200039-1534443
Certificate No. (cURus)	E60693
Clampable conductor	Cross-section for conductor connection
Clamping range, max.	10mm²
Clamping range, min.	0.2mm²
Clamping screw	M 3
class/ pollution degree II/2	class/ pollution degree III/2
Clearance, min.	10.2mm
Coating housing	Uncoated
Colour	black
Colour chart (similar)	RAL 9011
Comparative Tracking Index (CTI)	= 500
Conductor outlet direction	180°
Conductor type	Type of conductor
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 6
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 10
Connectable conductor cross section solid-core	0.2 - 6
Contact Base Material	Copper alloy
Contact Material	Copper alloy
Contact surface	tinned
Contact Type	Bus
Creepage distance, min.	13mm
Cross-section for conductor connection	Type
Degree of protection (IP), mounted	IP20
Depth	84.6mm
Depth (inches)	3.3307 inch
ECLASS 14.0	27-46-02-02
ECLASS 15.0	27-46-02-02
ETIM 10.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
Flexible, max. H05(07) V-K	10mm²
Flexible, min. H05(07) V-K	0.2mm²
Gender	F
Graph	Graph
GTIN (EAN)	4032248585731
GTIN (EAN) 4008190165352	Trapezoidal indentation crimp
GTIN (EAN) 4032248629787	180°, Clamping yoke connection, Clamping range, max. : 6 mm², Box
GTIN (EAN) 4032248629923	180°, Clamping yoke connection, Clamping range, max. : 6 mm², Box
GTIN (EAN) 4032248630141	180°, Clamping yoke connection, Clamping range, max. : 6 mm², Box
GTIN (EAN) 4050118392715	poles: 1
Height	25mm
Height (inches)	0.9842 inch
Housing Colour	Black
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
Institute (CSA)	CSA
Institute (cURus)	CURUS
Insulating material	PA GF
Insulating material group	II
interchangeability)	DIN IEC 512 part 7 section 5 / 05.94
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	1.200 "
L1 in mm	30.48mm
Layer structure of plug contact	6...8 µm Sn glossy
Material contact	Other copper alloys
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
Max Current Rating	35A
Max Operating Temperature	125°C
Max Voltage Rating	600V
Min Operating Temperature	-50°C
Modular spacing connections	7.62
Modular spacing contacts	7.62
Mounting	Cable Mount
Net weight	51.4g
Notes	•Additional variants on request
Number of Contacts	5
Number of Poles	5
Number of Rows	1
Operating Temperature	-50 - 125
Operating temperature, max.	125°C
Operating temperature, min.	-50°C
Overvoltage category	III
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.300 "
Pitch in mm (P)	7.62mm
Plug gauge in accordance with EN	2.8 mm x 2.0 mm; 2.4 mm
Plugging cycles	25
Plugging force/pole, max.	16.5 N
Pollution degree	2
pollution degree III/2	pollution degree III/3
Product data	IEC: 1000 V / 57 A / 0.2 - 10mm²
Product family	OMNIMATE Power - series
Product image	Dimensional drawing
Protection degree	IP20
Pulling force/pole, max.	11 N
Pull-out test	Standard
Rated cross-section	6mm²
Rated current (Use group B / CSA)	40.5 A
Rated current (Use group B / UL 1059) 40.5 A	Rated current (Use group C / UL 1059) 40.5 A
Rated current (Use group C / CSA)	40.5 A
Rated current (Use group D / CSA)	5 A
Rated current (Use group D / UL 1059) 5 A	Rated current (Use group F / UL 1059) 40.5 A
Rated current In	51
Rated impulse voltage for surge voltage 6000 V	Rated impulse voltage for surge voltage 8 kV
Rated impulse voltage for surge voltage 8 kV	Short-time withstand current resistance 3 x 1s with 420 A
Rated Surge Voltage	8
Rated voltage	1000
Rated voltage (Use group B / CSA)	600 V
Rated voltage (Use group B / UL 1059) 600 V	Rated voltage (Use group C / UL 1059) 600 V
Rated voltage (Use group C / CSA)	600 V
Rated voltage (Use group D / CSA)	600 V
Rated voltage (Use group D / UL 1059) 600 V	Rated voltage (Use group F / UL 1059) 1000 V
REACH SVHC	No SVHC above 0.1 wt%
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Screwdriver blade	0.6 x 3.5
Solid, max. H05(07) V-U	6mm²
Solid, min. H05(07) V-U	0.2mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Temperature range, installation, max.	100°C
Temperature range, installation, min.	-25°C
Terminal Pitch (mm)	7.62
Termination Method	Screw
Test for damage to and accidental	Standard
Test: Clampable cross section	Standard
Test: Durability of markings	Standard
Test: Misengagement (Non-	Standard
tested acc. to standard	IEC 60664-1, IEC 61984
Tightening torque for screw flange, min. 0.2 Nm	Tightening torque for screw flange, max.0.3 Nm
Tightening torque, max.	0.6 Nm
Tightening torque, min.	0.5 Nm
Type	PCB Connector
Type of connection	Flexible PCB-connector
Type of electric connection	Screw connection
UL 94 flammability rating	V-0
UL File Number Search	UL Website
Version	PCB plug-in connector, female plug, 7.62 mm,
Volume resistance	4.50 mO
VPE height	77.00mm
VPE length	260.00mm
VPE width	157.00mm
Width	53.34mm
Width (inches)	2.1 inch
Wire connection method	Clamping yoke connection
Wire cross-section, AWG, max.	AWG 8
Wire cross-section, AWG, min.	AWG 24
wire end ferrule	Stripping length
With protective conductor	false
