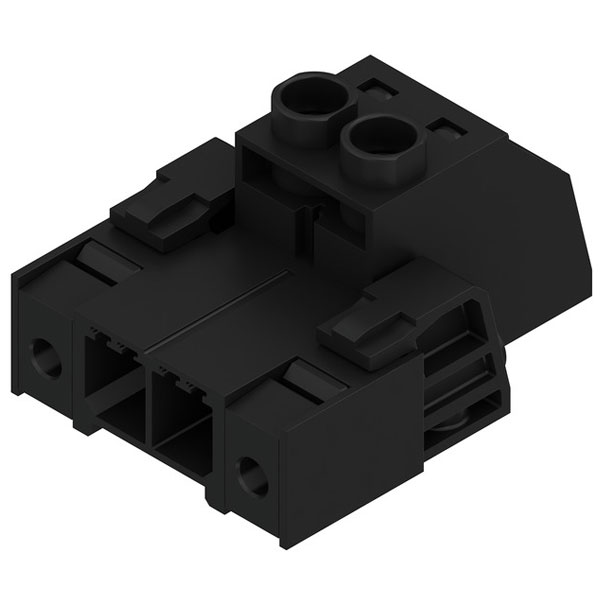

Weidműller 1931960000 Connector 7.62mm Female Shrouded

Weidmuller
Order Code:

14-5790

Brand: Weidmuller MPN: 1931960000
Qty Unit Price (Ex VAT)
100+ £1.94
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 100
589 in stock, despatched in 5 working days

Weidmüller SVZ 7.62HP/02/180SF SN BK BX is a PCB connector (wire connection), 1000 V, 57 A, Pitch in mm: 7.62, 6 mm², Number of poles: 2, Clamping yoke connection, Box. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
Mounting Type Through Hole
Angle contact/conductor connection 90° (upwards vertical)
Coating housing Uncoated
Connectable cable type Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve 0.25 - 6
Connectable conductor cross section fine-strand without cable end sleeve 0.5 - 10
Connectable conductor cross section solid-core 0.2 - 6
Contact Type Pin
Degree of protection (IP), mounted IP20
Housing colour Black
Housing Material Plastic
Inflammability class of insulation material according to UL94 V0
Material contact Copper
Material insulation body Polyamide (PA)
Material of contact surface Tin
Modular spacing connections 7.62
Modular spacing contacts 7.62
Number of Poles 2
Operating Temperature -50 - 125
Overvoltage category III
Pollution degree 2
Rated current In 41
Rated Surge Voltage 8
Rated voltage 1000
Type PCB Connector
Type of connection Flexible PCB-connector
Type of electric connection Screw connection
With protective conductor false
