Weidműller 1929890000 Connector Female Unshrouded 7.62mm

Weidmuller
Order Code:

14-6054

Brand: Weidmuller MPN: 1929890000
Qty Unit Price (Ex VAT)
50+ £3.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 50
100 in stock, despatched in 5 working days

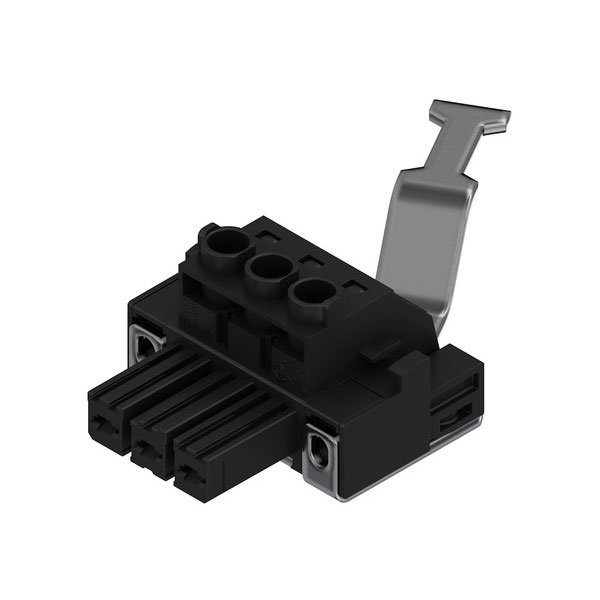

Weidmüller BVZ 7.62HP/03/180SH150C SN BK BX is a PCB connector (wire connection), 1000 V, 57 A, Pitch in mm: 7.62, 10 mm², Number of poles: 3, Clamping yoke connection, Box. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
Mounting Type Through Hole
Angle contact/conductor connection 90° (upwards vertical)
Coating housing Uncoated
Connectable cable type Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve 0.5 - 6
Connectable conductor cross section fine-strand without cable end sleeve 0.2 - 10
Connectable conductor cross section solid-core 0.2 - 6
Contact Type Bus
Degree of protection (IP), mounted IP20
Housing colour Black
Housing Material Plastic
Inflammability class of insulation material according to UL94 V0
Material contact Other copper alloys
Material insulation body Polyamide (PA)
Material of contact surface Tin
Modular spacing connections 7.62
Modular spacing contacts 7.62
Number of Poles 3
Operating Temperature -50 - 125
Overvoltage category III
Pollution degree 2
Rated current In 51
Rated Surge Voltage 8
Rated voltage 1000
Type PCB Connector
Type of connection Flexible PCB-connector
Type of electric connection Screw connection
With protective conductor false
