Weidmuller 1909670000-1 Cable Gland M16 Polyamide Grey 1 piece

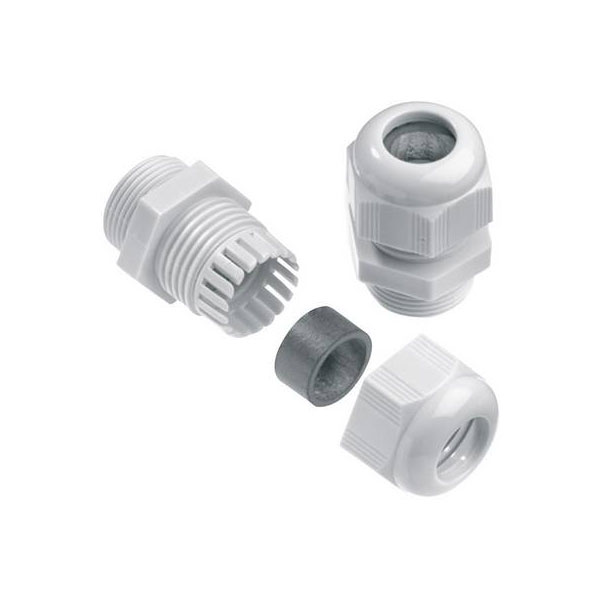

Image Representative of Range

Weidmuller 1909670000-1 Cable Gland M16 Polyamide Grey 1 piece

Weidmuller
Standard range
Order Code:

13-4948

Brand: Weidmuller MPN: 1909670000-1 EAN-13: 2050001365880
Qty Unit Price (Ex VAT)
10+ £0.771
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
118 in stock, despatched in 4 working days

Weidmüller manufactures the 1909670000-1 cable gland, featuring M16 thread and constructed from polyamide in grey. This gland is designed to ensure secure cable entry and provide strain relief for cables with diameters ranging from 4 to 8 mm. It is commonly used in electrical enclosures and panels for effective cable management and protection.
Type Cable gland
Clamp Ø 4mm
Clamping range diameter mm 4 - 8mm
External thread M16
Factory colour Grey
Halogen-free No
IP rating IP67
Length 34.5mm
Material Polyamide
Material (details) Plastic
Max. temperature +100°C
Min. temperature -20°C
Misc Attribute 1 VG M16-K67 4-8
Misc Attribute 2 Metric
RoHS-compliant Yes
Spanner size 19mm
Terminal Ø (max.) 8mm
Thread Length 8mm
Torque 3.5 Nm
Weight 6.18g
