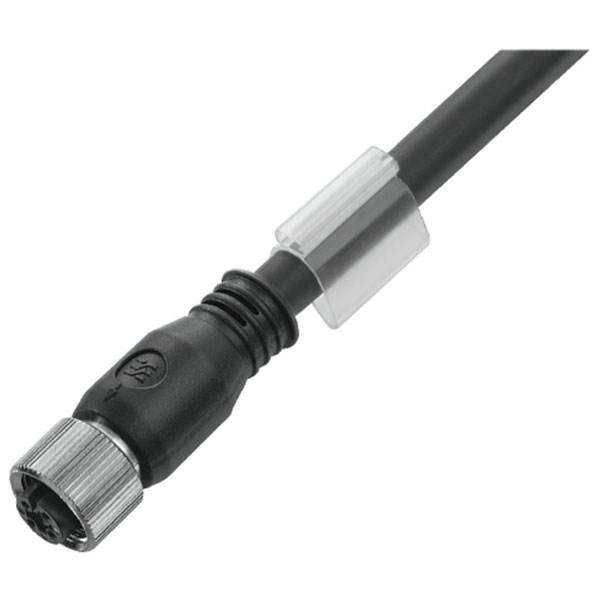

Weidmüller manufactures the 1890520050 cable with one end featuring no connector and an M12 at the other end. It is suited for industrial automation applications, providing reliable connections in demanding environments. This cable is ideal for engineers needing customisable solutions.
| Acceleration |
5 m/s² |
| AF size |
13mm |
| Bending cycles |
1 mill. |
| Bending radius, min., moving |
12 x cable diameter |
| Bending radius, min., stationary |
5 x cable diameter |
| Cable Length |
0.5 m |
| Cable Type |
Multi-core |
| Certificate no. (cULus) |
E307231 |
| Coding |
A-coded |
| Colour |
Black |
| Colour coding |
blue, red, white, brown, |
| conditions, such as humidity, dust, heat, cold, shock or |
Order No. |
| Configurable cable length |
No |
| Connection thread |
M12 |
| Connector standard |
IEC 61076-2-101 |
| Contact Finish Termination |
GOLD |
| Contact Gender |
FEMALE |
| Contact surface |
Gold-plated |
| Continuity resistance |
0 |
| Core cross-section |
0.25mm² |
| Degree of protection (IP) |
IP67 |
| Dimensioned drawing |
Pole scheme |
| ECLASS 14 |
27-06-03-11 |
| ECLASS 15.0 |
27-06-03-11 |
| ETIM 10 |
EC001855 |
| ETIM 8.0 |
EC001855 |
| ETIM 9.0 |
EC001855 |
| GTIN (EAN) |
4032248605217 |
| Halogen |
No |
| Halogen free |
true |
| Housing main material |
PUR |
| Insulation |
PP |
| Insulation Resistance |
108 O |
| Irradiation crosslinked |
No |
| jumpered |
No |
| LED |
No |
| Length |
0.5 |
| Manufacturer Series |
1890520050 |
| Material of cable sheath |
Polyurethane (PUR) |
| Material of contact surface |
Gold |
| Net weight |
39g |
| Nominal Current |
2 A |
| Nominal Voltage |
30 V |
| Number of Poles |
8 |
| Outer cladding in accordance with UL |
20549 (80 °C / 300 V) |
| Outside Diameter |
6.3 mm ± 0.2mm |
| Permitted cable outer temperature after assembling without vibration |
-40 - 80 |
| Permitted cable outer temperature during assembling/handling |
-25 - 80 |
| Plug left |
M12, A-coded, IP67, |
| Plug right |
free conductor end |
| Plugging cycles |
= 100 |
| Pollution severity |
3 |
| Positioning cable feed, box-sided |
Straight |
| Protection degree |
IP67, when screwed in, |
| Rated current In |
2 |
| Rated voltage |
30 |
| REACH SVHC |
Lead 7439-92-1 |
| Resistant to welding beads |
No |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9 |
| Screened |
true |
| Sheath material |
PUR |
| Sheathing colour |
black |
| Shielded |
Yes |
| Speed |
100 m/s |
| Suitable for cable carriers |
Yes |
| Temperature range of housing |
-40 … +85 ° C |
| Temperature range, moving |
-25...80°C |
| Temperature range, stationary |
-40...80°C |
| Threaded ring material |
Brass, nickel-plated |
| Tightening torque |
M12: 1.0 Nm |
| Torsion resistance |
360 °/m |
| Total Number of Contacts |
8 |
| Type |
Power Cable |
| Type of electrical connection, box-sided |
M12 |
| Type of plug-in contact, box-sided |
Female (bus) |
| UL File Number Search |
UL Website |
| vibration. |
Type |
| Vulcanized |
false |
| Welding spark resistance |
No |
| Wiring diagram |
The ideal tool: Screwty ® with torque function |
| With LED indication |
false |
