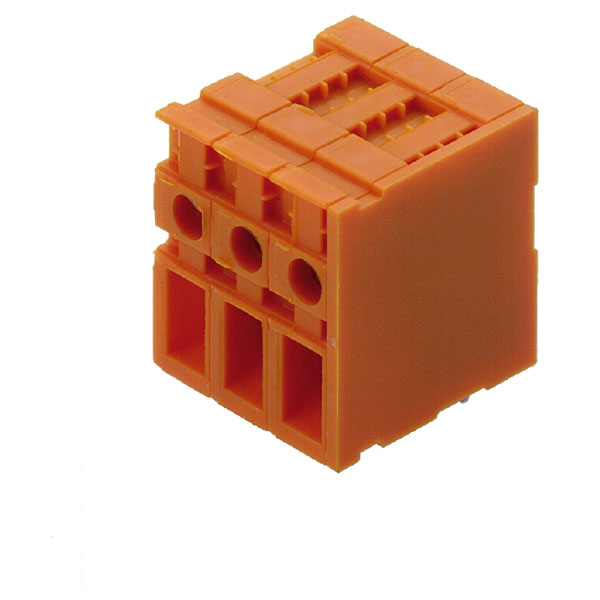

Weidmüller produces the 1786420000 PCB terminal with a 7.62 mm pitch, featuring an unshrouded female design. The terminal is ideal for securing connections on printed circuit boards in various electronic applications. Typical uses include industrial automation and circuit integration in control panels.
| Pitch |
7.62mm |
| Mounting Type |
Through Hole |
| Wire Termination |
Screwless |
| (Tu=40°C) |
pollution degree II/2 |
| Approvals |
CSA, UR |
| Available until |
2023-03-31T00:00:00+02:00 |
| Certificate No. (CSA) |
154685-1501716 |
| Certificate No. (UR) |
E60693 |
| Clampable conductor |
Cross-section for conductor connection |
| Clamping range, max. |
6mm² |
| Clamping range, min. |
0.13mm² |
| Clamping screw |
M 3 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Colour |
Orange |
| Colour chart (similar) |
RAL 2000 |
| Comparative Tracking Index (CTI) |
= 600 |
| Conductor outlet direction |
90° |
| Contact Material |
Copper |
| Contact Plating |
Copper, Tin |
| Contact surface |
tinned |
| Contains Lead |
No |
| Cross-section for conductor connection |
Type |
| Current |
30A |
| Current Rating |
10A |
| Delivery status |
Discontinued |
| Depth |
26mm |
| Depth (inches) |
1.0236 inch |
| ECLASS 14 |
27-46-01-01 |
| ECLASS 15.0 |
27-46-01-01 |
| ETIM 10 |
EC002643 |
| ETIM 8.0 |
EC002643 |
| ETIM 9.0 |
EC002643 |
| Fitted by customer |
No |
| Flammability Rating |
UL94 V-2 |
| Flexible, max. H05(07) V-K |
4mm² |
| Flexible, min. H05(07) V-K |
0.5mm² |
| GTIN (EAN) |
4032248201051 |
| Height |
26mm |
| Height (inches) |
1.1614 inch |
| Height of lowest version |
26mm |
| Housing Colour |
Orange |
| Institute (CSA) |
CSA |
| Institute (UR) |
UR |
| Insulating material |
PA |
| Insulating material group |
I |
| Insulation Material |
Nylon |
| IPC conformity |
Conformity: The products are developed, manufactured and delivered according international |
| L1 in inches |
2.100 " |
| L1 in mm |
53.34mm |
| Layer structure of solder connection |
6...10 µm Sn |
| Length |
61mm |
| Maximum Operating Temperature |
100°C |
| Min Operating Temperature |
-50°C |
| Minimum Operating Temperature |
-50°C |
| Mount |
Through Hole |
| Mounting onto the PCB |
THT solder connection |
| Net weight |
64.42g |
| Notes |
•Additional variants on request |
| Number of Circuits |
8 |
| Number of Contacts |
8 |
| Number of levels |
1 |
| Number of Poles |
8 |
| Number of Positions |
8 |
| Number of Positions Per Level |
8 |
| Number of Rows |
1 |
| Number of solder pins per pole |
2 |
| Operating temperature, max. |
100°C |
| Orientation |
Right Angle |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.300 " |
| Pitch in mm (P) |
7.62mm |
| Plug gauge in accordance with EN |
2.8 mm x 2.4 mm |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 1000 V / 32 A / 0.5 - 6mm² |
| Product family |
OMNIMATE Signal - series |
| Protection degree |
IP20 |
| Qty. |
50 items |
| Radiation Hardening |
No |
| Rated current (Use group B / CSA) |
25 A |
| Rated current (Use group B / UL 1059) 30 A |
Rated current (Use group D / UL 1059) 10 A |
| Rated current (Use group D / CSA) |
10 A |
| Rated current, min. number of poles |
32 A |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated voltage (Use group D / UL 1059) 300 V |
| Rated voltage (Use group D / CSA) |
300 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Reference text |
Length of ferrules is to be chosen depending on the product and the rated voltage., The outside |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| RoHS Compliant |
Yes |
| Screwdriver blade |
0.6 x 3.5 |
| Screwdriver blade standard |
DIN 5264 |
| Series |
TOP4GS |
| Solder eyelet hole diameter (D) |
1.3mm |
| Solder pin dimensions |
0.8 x 0.8 mm |
| Solder pin length (l) |
3.5mm |
| Solid, max. H05(07) V-U |
6mm² |
| Solid, min. H05(07) V-U |
0.5mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Stranded, min. H07V-R |
1.2mm² |
| Temperature range, installation, max. |
100°C |
| Temperature range, installation, min. |
-25°C |
| Termination |
Screw |
| tested acc. to standard |
IEC 60664-1, IEC 61984 |
| Tightening torque, max. |
0.6 Nm |
| Tightening torque, min. |
0.5 Nm |
| Touch-safe protection acc. to DIN VDE |
IP 20 |
| Type |
PCB terminal |
| UL 94 flammability rating |
V-2 |
| UL File Number Search |
UL Website |
| Version |
Printed circuit board terminals, 7.62 mm, Num- |
| Voltage |
300V |
| Voltage Rating |
300V |
| Volume resistance |
1.40 mO |
| VPE height |
89.00mm |
| VPE length |
337.00mm |
| VPE width |
147.00mm |
| Width |
26mm |
| Width (inches) |
2.4591 inch |
| Wire connection method |
TOP connection |
| Wire cross-section, AWG, max. |
AWG 10 |
| Wire cross-section, AWG, min. |
AWG 26 |
| wire end ferrule |
Stripping length |
| Wire Gauge (Max) |
26AWG |
| Wire Gauge (Min) |
10AWG |
