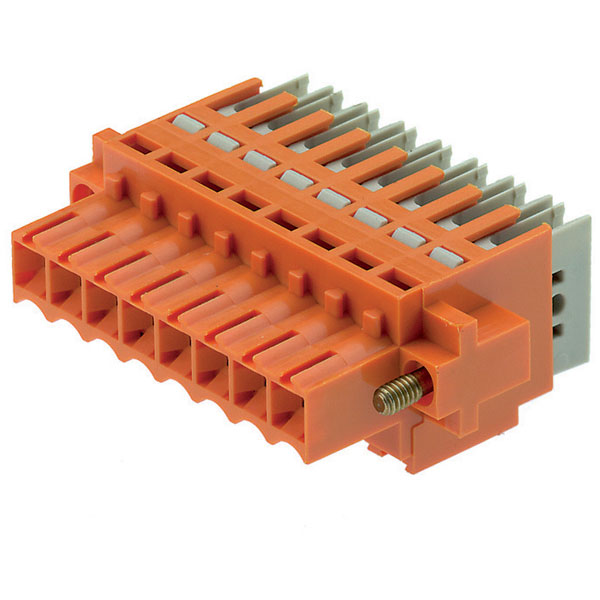

Weidmüller produces a female unshrouded connector with a 3.50mm pitch, designed for reliable electrical connections. This product features a compact size, making it suitable for applications where space is limited, and allows for easy integration into various electronic assemblies. Commonly used in industrial automation and control systems, it supports robust performance and flexibility.
| Pitch |
3.5mm |
| No. of Rows |
1 |
| Colour |
Orange |
| (Tu=20°C) |
(Tu=40°C) |
| (Tu=40°C) |
pollution degree II/2 |
| Available until |
2023-09-30T00:00:00+02:00 |
| Can be coded |
Yes |
| Certificate No. (CSA) |
200039-1068660 |
| Certificate No. (UR) |
E60693 |
| Clamping range, max. |
0.5mm² |
| Clamping range, min. |
0.32mm² |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Colour chart (similar) |
RAL 2000 |
| Comparative Tracking Index (CTI) |
= 200 |
| Conductor outlet direction |
90°/270° |
| Contact Material |
Cu-alloy |
| Contact surface |
tinned |
| Delivery status |
Discontinued |
| Depth |
21.2mm |
| Depth (inches) |
0.8346 inch |
| Flexible, max. H05(07) V-K |
0.5mm² |
| Flexible, min. H05(07) V-K |
0.2mm² |
| GTIN (EAN) |
4032248146659 |
| Height |
12.5mm |
| Height (inches) |
0.4921 inch |
| Institute (CSA) |
CSA |
| Institute (UR) |
UR |
| Insulating material |
PBT |
| Insulating material group |
IIIa |
| Insulation Resistance |
= 108 O |
| IPC conformity |
Conformity: The products are developed, manufactured and delivered according international |
| L1 in inches |
0.413 " |
| L1 in mm |
10.50mm |
| max. |
0.2 Nm |
| Maximum Operating Temperature |
80°C |
| Minimum Operating Temperature |
-50°C |
| Moisture Level (MSL) |
UL 94 flammability rating |
| Net weight |
4.24g |
| Notes |
•Additional variants on request |
| Number of Poles |
4 |
| Number of Rows |
1 |
| Outer diameter of insulation, max. |
2.10mm |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.138 " |
| Pitch in mm (P) |
3.50mm |
| Plugging cycles |
25 |
| Plugging force/pole, max. |
2 N |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 320 V / 6 A / 0.2 - 0.5mm² |
| Product family |
OMNIMATE Signal - series BL/SL 3.50 |
| Pulling force/pole, max. |
2 N |
| Rated cross-section |
0.5mm² |
| Rated current (Use group B / CSA) |
7 A |
| Rated current (Use group B / UL 1059) 7 A |
Rated current (Use group D / UL 1059) 7 A |
| Rated current (Use group D / CSA) |
7 A |
| Rated current, min. number of poles |
6 A |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated voltage (Use group D / UL 1059) 300 V |
| Rated voltage (Use group D / CSA) |
300 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Reference text |
The outside diameter of |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Screwdriver blade |
0.4 x 2.5 |
| Screwdriver blade standard |
DIN 5264-A |
| Solid, max. H05(07) V-U |
0.5mm² |
| Solid, min. H05(07) V-U |
0.2mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Temperature range, installation, max. |
80°C |
| Temperature range, installation, min. |
-25°C |
| tested acc. to standard |
IEC 60664-1, IEC 61984 |
| Tightening torque |
Torque type |
| Type of connection |
Field connection |
| UL File Number Search |
UL Website |
| Usage information |
Tightening torque |
| Version |
PCB plug-in connector, female plug, 3.50 mm, |
| Volume resistance |
=5 mO |
| VPE height |
78.00mm |
| VPE length |
137.00mm |
| VPE width |
94.00mm |
| w. wire end ferrule, DIN 46228 pt 1, |
0mm² |
| Wire connection method |
IDC terminal |
| Wire cross-section, AWG, max. |
AWG 20 |
| Wire cross-section, AWG, min. |
AWG 22 |
