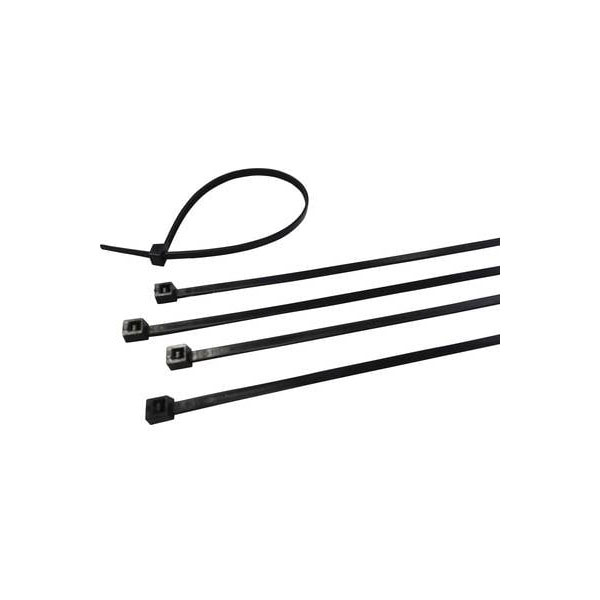

Weidmüller 1720650000 CB 290/3.6 Cable Ties 290x3.6mm Black 100 pieces

Weidmüller manufactures the 1720650000 CB 290/3.6 cable tie, which measures 290 mm in length and 3.6 mm in width, available in black. This packaging unit contains 100 pieces, ideal for industrial goods needs. Typical applications include cable bundling and management.

Length	290mm
Width	3.6mm
Colour	Black
Material	PA66
Type	Cable Ties
Band width	3.5
Basic material	Polyamide 66
Bundle diameter	79 - 3
Bundle diameter, max.	79mm
Bundle diameter, min.	3mm
Cable diameter, max.	80mm
Certificate No. (UR)	E317499
Depth	1.2mm
Depth (inches)	0.0472 inch
Dimensions	(W x H) 3.6 mm x 290 mm
ECLASS 14.0	27-14-07-02
ECLASS 15.0	27-14-07-02
ETIM 10.0	EC000046
ETIM 8.0	EC000046
ETIM 9.0	EC000046
Fluorescent	false
For re-opening	No
Gearing	Inside
GTIN (EAN)	4008190362331
Halogen	No
Halogen free	true
Height	290mm
Height (inches)	11.4173 inch
Inflammability class of insulation material according to UL94	V2
Length belt/tape/tie	290
Material quality	Polyamide (PA)
Max. bundle diameter	80mm
Max. sheet thickness	1.20mm
Max. temperature	+85°C
Min. temperature	-40°C
Minimum holding force	130N
Mounting temperature	10 - 60
Net weight	1.41g
Operating Temperature	-40 - 85
Operating Temperature Range	-40...85°C
Operating temperature range, max.	85°C
Operating temperature range, min.	-40°C
Product information	Number of bags in box (pieces): 60
Qty.	6000 items
REACH SVHC	No SVHC above 0.1 wt%
Releasable closure	false
ROHS	Yes
RoHS Compliance Status	Compliant without exemption
RoHS Version	2011/65/EU
Surface protection	Plastic-coated
Tensile Strength	180 N
Tensile strength (Pound-force)	40 lbf
Text strip	None
Tie thickness	1.2
Transparent	false
Type of fastening	Other
UL 94 flammability rating	V-2
UL File Number Search	UL Website
UV-resistant	No
UV-stable according to ASTM D6779	false
Version	Cable ties, 3.5 x 290 mm, Polyamide 66, 180 N
Width (inches)	0.1378 inch
