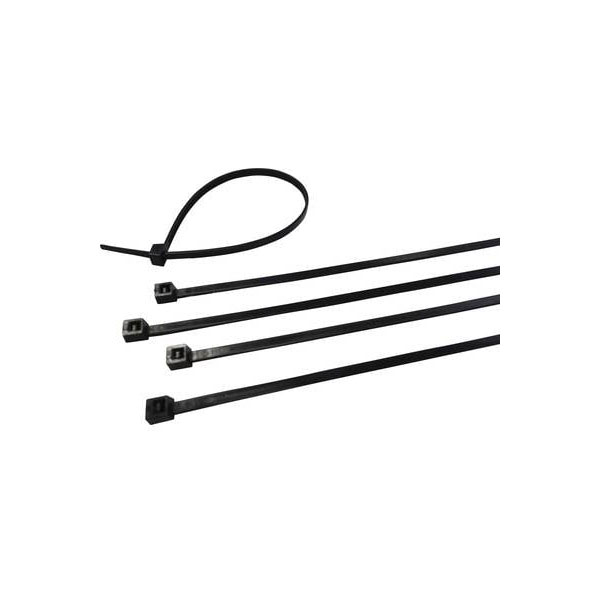

The Weidmüller 1697910000 CB 200/4.8 Cable Tie is a black, 200 mm long and 4.5 mm wide cable tie. It is designed for industrial applications, offering effective cable bundling and management. Typically used for organising cables in various settings, this product comes in a packaging unit of 100 pieces.
| Length |
200mm |
| Width |
4.5mm |
| Colour |
Black |
| Material |
PA66 |
| Type |
Cable Ties |
| Approvals |
UR |
| Band width |
4.5 |
| Basic material |
Polyamide 66 |
| Bundle diameter |
50 - 3 |
| Bundle diameter, max. |
50mm |
| Bundle diameter, min. |
3mm |
| Cable diameter, max. |
50mm |
| Certificate No. (UR) |
E317499 |
| Color |
Black |
| Depth |
1.4mm |
| Depth (inches) |
0.0551 inch |
| Dimensions |
(W x H) 4.5 mm x 200 mm |
| ECLASS 14.0 |
27-14-07-02 |
| ECLASS 15.0 |
27-14-07-02 |
| ETIM 10.0 |
EC000046 |
| ETIM 8.0 |
EC000046 |
| ETIM 9.0 |
EC000046 |
| Flammability Rating |
UL94 V-2 |
| Fluorescent |
false |
| For re-opening |
No |
| Gearing |
Inside |
| GTIN (EAN) |
4008190882983 |
| Halogen |
No |
| Halogen free |
true |
| Height |
200mm |
| Height (inches) |
7.874 inch |
| Inflammability class of insulation material according to UL94 |
V2 |
| Length belt/tape/tie |
200 |
| Material quality |
Polyamide (PA) |
| Max. bundle diameter |
50mm |
| Max. sheet thickness |
1.40mm |
| Max. temperature |
+85°C |
| Min. temperature |
-40°C |
| Minimum holding force |
220N |
| Mount |
Free Hanging |
| Mounting temperature |
10 - 60 |
| Net weight |
1.3g |
| Operating Temperature |
-40 - 85 |
| Operating Temperature Range |
-40...85°C |
| Operating temperature range, max. |
85°C |
| Operating temperature range, min. |
-40°C |
| Package/Case |
100 |
| Qty. |
100 items |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Releasable closure |
false |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Surface protection |
Plastic-coated |
| Tensile Strength |
220 N |
| Tensile strength (Pound-force) |
49 lbf |
| Text strip |
None |
| Tie thickness |
1.4 |
| Transparent |
false |
| Type of fastening |
Other |
| UL 94 flammability rating |
V-2 |
| UL File Number Search |
UL Website |
| UV-resistant |
No |
| UV-stable according to ASTM D6779 |
false |
| Version |
Cable ties, 4.5 x 200 mm, Polyamide 66, 220 N |
| Weight |
1.28g |
| Width (inches) |
0.1772 inch |
