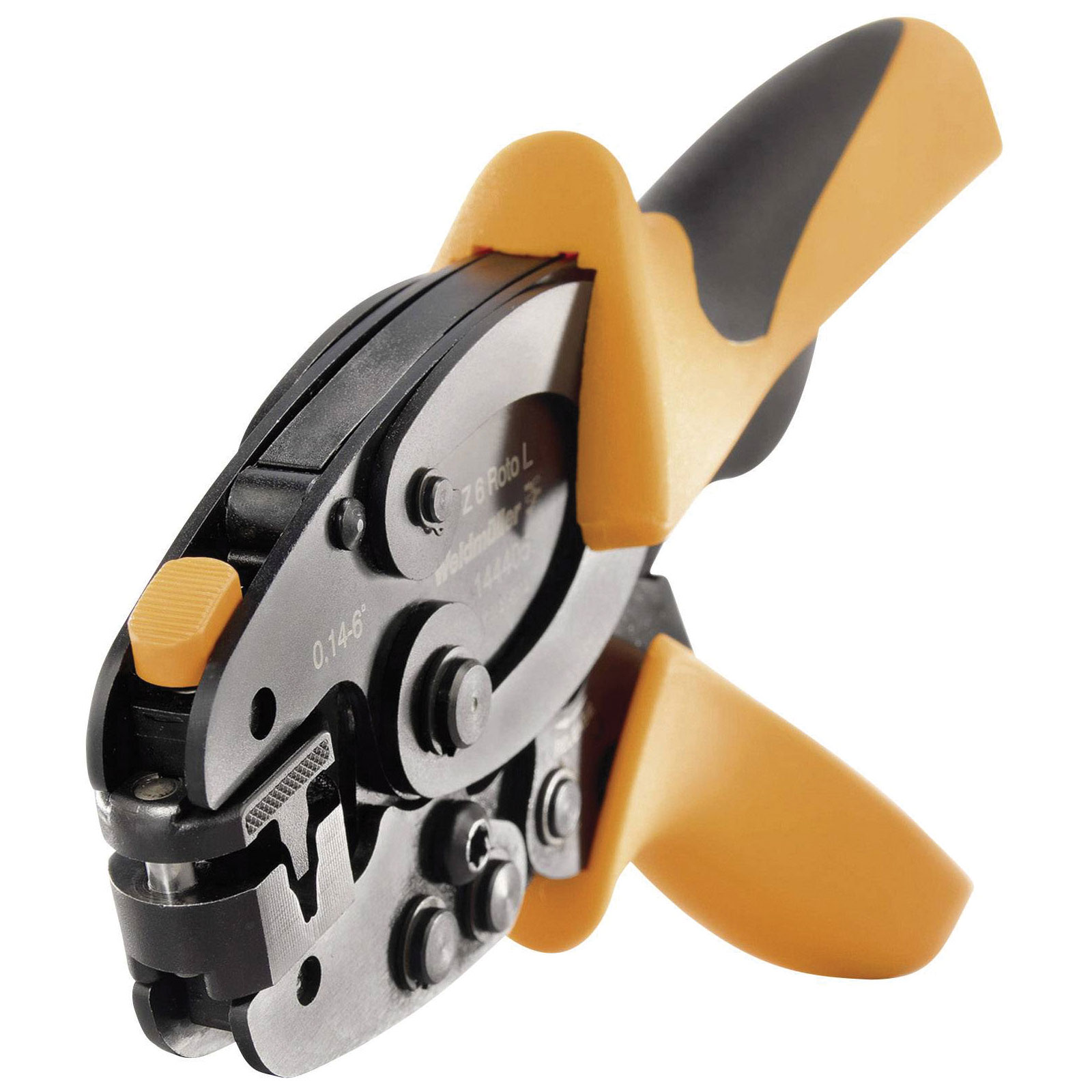

Weidmuller 1444050000 Crimping Tool Black/Orange 0.104-6 mm² Ferrules

The Weidmüller 1444050000 crimping tool, featuring black and orange colours, supports wire sizes from 0.104 mm² to 6 mm². Designed for high precision, it is commonly used in creating reliable electrical connections with crimp connectors. The ergonomic PZ 6 Roto L design ensures efficient use in both professional and industrial settings.

Type	Crimping tool
Length	200mm
Colour	Black, Orange
Compatible With	Ferrule
Compression shape	Trapezoid compression
Conductor cross-section, max. AWG	AWG 10
Conductor cross-section, min. AWG	AWG 26
Construction/operation	Mechanical
Crimping range, max.	6mm²
Crimping range, min.	0.14mm²
Crimping type/profile	Trapezoidal crimp
Cross Section	0.14 - 6
Depth	22mm
Depth (inches)	0.8661 inch
Description of article	(1)Crimping tool
Drive	mechanical
GTIN (EAN)	4050118248593
Height	80mm
Height (inches)	3.1496 inch
Inserts exchangeable	true
max. cross section	6mm²
Min. cross section	0.104mm²
Misc Attribute	PZ 6 Roto L
Net weight	431.4g
Number of included inserts	0
REACH SVHC	Lead 7439-92-1
RoHS Compliance Status	Not affected
RoHS Compliant	No
SCIP	2159813b-98fd-4068-b62a-bc89a046c012
Suitable For	Cable end sleeves
Type of contact	Wire-end ferrules with/
Weight	0.4kg
Width	200mm
Width (inches)	7.874 inch
Wire end ferrules cross-section, max.	6mm²
Wire end ferrules cross-section, min.	0.14mm²
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	10AWG
With automatic return	true
With locking device (for mechanical tools)	true
