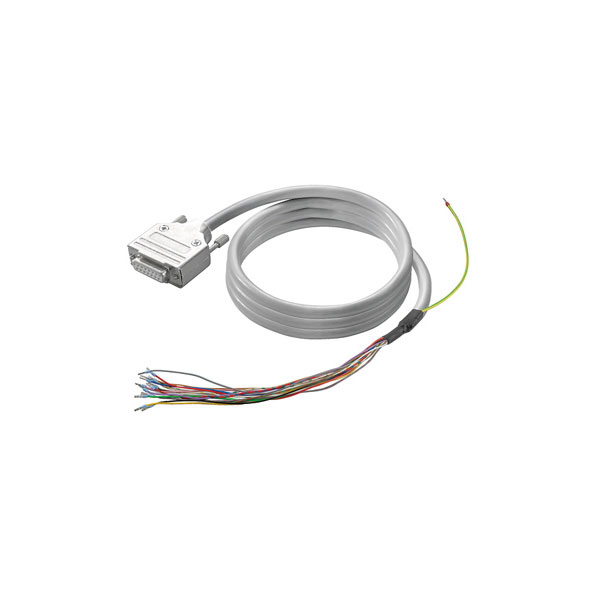

Weidműller 1350500020 Cable Analogue Signals Reliable Data Transmission

Weidmüller manufactures the 1350500020 cable designed for analogue signals, ensuring reliable data transmission. This cable provides high-quality electrical performance, suitable for industrial settings. Typical applications include use in automation systems and communication networks.

Colour	Grey
Length	2
Type	Cable
Basic material	PVC
Cable	Cable LiYCY
Cable Length	2 m
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Connector PLC side	H0.25/10 (FERRULES
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
Function	PLC - other devices
GTIN (EAN)	4032248177349
Interface connector	SUB-D FEMALE 37P
Net weight	821.32g
Number of Poles	37
Number of poles, min.	37-pole
Operating Temperature	-10...50
Operating Voltage	= 60 V DC = 25 V AC
Outer Diameter	12.2 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	= 60 Vdc = 25 Vac
REACH SVHC	No SVHC above 0.1 wt%
Resistance	= 80 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant
Storage temperature	-10...60°C
Suitable For	Analogue signals
Suitable for analogue signals	true
Suitable for digital signals	false
Suitable for input board PLC	false
Suitable for output card PLC	false
Total current, max.	3 A
Type of electrical connection, box-sided	Cable end sleeve
Type of electrical connection, field-sided	Other
Version	Pre-assembled cable, PAC, Cable LiYCY, 12.2 ± 1
Wire cross-section	0.25mm²
