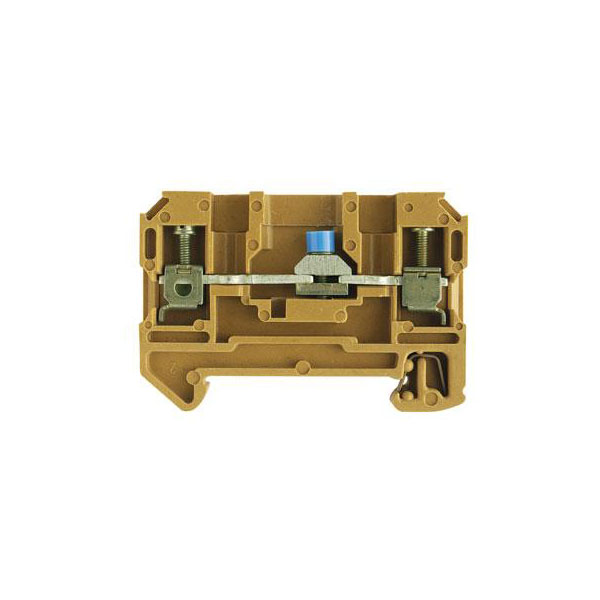

Weidműller 1272420000 Terminal Block Isolating And Measuring

Weidmüller 1272420000 Terminal Block is used for isolating and measuring electrical circuits. It features high reliability and safety for use in industrial automation and control systems. Typical applications include signal interfacing and circuit protection in engineering environments.

Alternative product	WTL 4
Ambient temperature	-5 °C…40°C
Approvals	IEC, CE
Available until	2022-12-31T00:00:00+01:00
Basic material	KrG
Blade size	0.6 x 3.5 mm
Clamping range, max.	6mm²
Clamping range, min.	0.13mm²
Clamping screw	M 2.5
Colour	Yellow
Conductor cross-section, flexible plus	4mm²
Connection cross-section, stranded,	4mm²
Connection cross-section, stranded, min.1.5 mm²	Torque level with DMS electric
Connection direction	on side
Contains Lead	No
Continuous operating temp., max.	130°C
Continuous operating temp., min.	-60°C
core, max.	core, min.
Current	20A
Current at maximum wires	41 A
Current Rating	32A
Delivery status	Discontinued
Depth	40mm
Depth (inches)	1.5748 inch
ECLASS 14	27-25-01-09
ECLASS 15.0	27-25-01-09
End cover plate required	Yes
ETIM 10	EC000902
ETIM 8.0	EC000902
ETIM 9.0	EC000902
Explosion-tested version	No
Flammability Rating	UL94 5VA
Gauge to IEC 60947-1	A3
GTIN (EAN)	4008190168483
Height	40mm
Height (inches)	2.252 inch
Housing Colour	Yellow
Installation advice	Direct mounting
Insulation Material	Plastic
Length	57.2mm
Levels cross-connected internally	No
min.	stranded with wire-end ferrules DIN
Mounting rail	TS 35
Net weight	15.1g
N-function	No
Nominal Current	32 A
Number of Circuits	3
Number of clamping points per level	2
Number of connections	2
Number of Contacts	3
Number of levels	1
Number of Positions	2
Number of potentials	1
Number of potentials per tier	1
Number of Rows	3
Number of similar terminals	1
Open sides	right
Packaging	Bulk
PE connection	No
PE function	No
PEN function	No
Pollution severity	3
Power loss in accordance with IEC	1.02 W
Radiation Hardening	No
Rated cross-section	4mm²
Rated DC voltage	400 V
Rated impulse withstand voltage	6 kV
Rated voltage	400 V
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant
RoHS Compliant	Yes
SCIP	999cd67e-471e-4085-8dba-1342fcea86de
Series	SAK
Standards	IEC 60947-7-1
Storage temperature	-25 °C...55°C
stranded with wire-end ferrules DIN	stranded, max.
stranded, min.	max.
Stripping length	10mm
Terminal Width	6mm
Termination	Screw
Tightening torque, max.	0.7 Nm
Tightening torque, min.	0.4 Nm
Type	Terminal block
Type of connection	Screw connection
Type of mounting	Snap-on
UL 94 flammability rating	V-0, 5VA
Voltage	300V
Voltage Rating	6kV
Volume resistance according to IEC	1 mO
Width	6mm
Width (inches)	0.2362 inch
Wire Gauge (Max)	22AWG
Wire Gauge (Min)	12AWG
