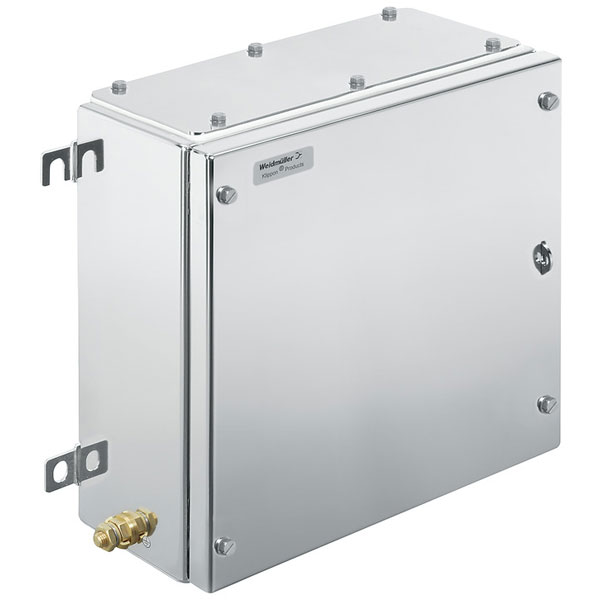

Weidműller 1194760002 Housing 306x306x200mm Untreated

Weidmüller 1194760002 is an untreated housing unit with dimensions of 306x306x200mm. This product is designed for protecting electrical components and connections in various industrial environments. Its robust design makes it suitable for applications requiring durability and reliability.

Type	Housing
Material	Stainless steel
Access opening: height	253mm
Access opening: width	247mm
AF size	10mm
Approval conditions	ATEX, CCoE, DNV, IECEX,
Areas of use	Explosive risk zone,
Attestation of Conformatiy No. (AoC)	DE PS261X 160309
Basic material	Stainless steel 1.4404
Certificate No. (ATEX)	PTB11ATEX2019
Certificate No. (CCOE)	P461058_1
Certificate no. (cULus)	E243298
Certificate No. (DNV)	TAE000013S
Certificate No. (IECEX)	IECEXPTB11.0071
Certificate no. (INMETRO)	IEX13.0006U
Certificate No. Electronic Box (NEPSI)	2020322303003289
Certificate no. empty enclosure	LMP 21.0016U
Certificate No. UL 508A	E223801
Certificate No. UL Haz.Loc.	E223792
Certificate No. UL Ord.Loc.	E243298
Certificate No. UL Terminal Box	E223792
Declaration of Conformatiy No. (DoC	DE PS261X 160412
Degree of protection (IP)	IP66
Depth	200
Depth (inches)	7.874 inch
Dimension of box	460x500x290
Earth, enclosure, internal	Welded-on M6 stainless-
ECLASS 14	27-18-05-02
ECLASS 15.0	27-18-05-02
Enclosure attachment	4 welded-on mounting
ETIM 10	EC002503
ETIM 8.0	EC002503
ETIM 9.0	EC002503
Flange plate	Yes
Flange plate mounting	M6 hexagonal head
For Ex-zone dust	20, 21, 22
For Ex-zone gas	0, 1, 2
Gland plates	Bottom
GTIN (EAN)	4050118107562
Height	306
Height (inches)	12.0472 inch
Impact resistance	7 J ATEX version, 10 J
industries. The Klippon® TB MH enclosure range offers	1.4404 (316L), untreated, silver
inner (female) thread	feet with 11 mm holes (2
Integral fixing	4, 6 or 9 stud bolts M6
Lid	Yes
Lid attachment	4 hinges and M6 hex-head
LVD)	001ISS03
M63	2
Material thickness of cover	1.5mm
Material thickness of enclosure	1.5mm
Material thickness of flange	3mm
Max. payload	37kg
Maximum Operating Temperature	135°C
Minimum Operating Temperature	-60°C
Mounting dimension - height	203mm
Mounting dimension - width	332mm
Net weight	11736.59g
Note: protection class	If used in temperature
Note: room temperature (service)	Limited to IP66
Number of cable screw gland plates	1
Number of lid screws	4
Opening angle lid	130.00°
Operating Temperature	-60 °C...135°C
Overall dimensions	317 x 357 x 215
Position PE bolts	Enclosure side C
Product information	Minimum order quantity (5 pieces)
Protection class (UL)	Type 3, Type 4X, Type 12
Protection degree	IP66, IP67
ranges above 105 °C, IP	screws 10 SW
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	8d5fcdfe-c58e-44e1-a6b4-74d2bbccc9dd
Seal material	Silicone
Standards	DIN EN 62208 - Empty
Surface finish	untreated
Surface finishing	Untreated
Torque for lid screws	2.5 Nm
UL File Number Search	UL Website
Version	Klippon TB MH (Terminal Box - Multi Hinge),
WDU 10 / ZDU 10	1x20
WDU 35 / ZDU 35	1x12
WDU 6 / ZDU 6	2x25
Width	306
Width (inches)	12.0472 inch
