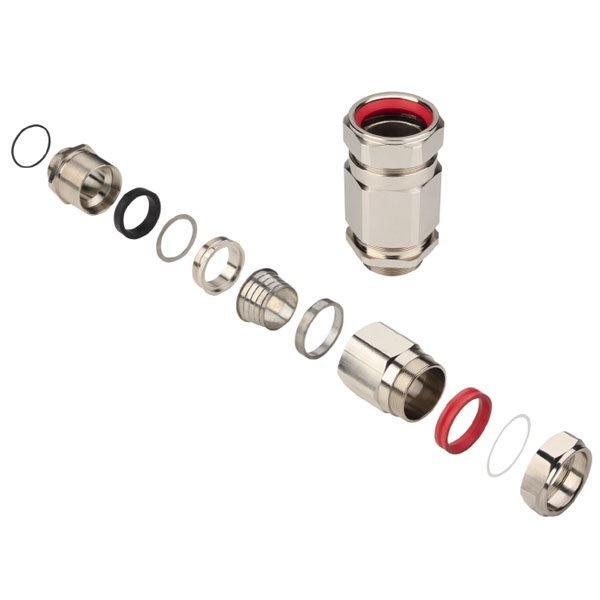

Weidműller 1136990000 Cable Gland Straight M40 Durable Secure Fit

Weidmüllers 1136990000 Cable Gland offers a straight M40 design providing a durable and secure fit. It is specifically engineered to maintain robust cable connections in demanding industrial environments. Common applications include electrical enclosures and machinery installations.

Thread Size	M40
Colour	Metal
Material	Brass (Ni-plated)
Type	Cable gland
AF size 1	55mm
AF size 2	55mm
also possible to connect non-armoured cables and lines.	36.2 mm, ID min. 23.00 - ID max. 32.20 mm,
Alternative product	E1W/40/M40-WM
Approval conditions	ATEX, IECEX
Armour, max.	2mm
Armour, min.	0.1mm
Available until	2023-07-30T00:00:00+02:00
Basic material	Brass, nickel-plated
Cable gland	metric, nickel-plated brass
Certificate No. (ATEX)	SIRA05ATEX1285X
Certificate No. (IECEX)	IECEXSIR05.0067X
Certificate no. cable gland (IECEx)	IECEx CML 19.0109X
Delivery status	This article will no longer be available in the future.
ECLASS 14	27-14-08-04
ECLASS 15.0	27-14-08-04
ETIM 10	EC000441
ETIM 8.0	EC000441
ETIM 9.0	EC000441
External thread	M 40
GTIN (EAN)	4032248972623
Halogen	No
Height	113mm
Height (inches)	4.4488 inch
Identification	ATEX: II 2G, Ex db IIC Gb,
Inner cable diameter, max.	32.20mm
Inner cable diameter, min.	23.00mm
Installation guidelines	See assembly instructions
Length	113mm
Length (inches)	4.4488 inch
Length of thread	16mm
Net weight	1150g
Operating Temperature	-60 °C...180°C
Operating temperature range, max.	180°C
Operating temperature range, min.	-60°C
O-Ring	Silicone
Outer cable diameter, max.	36.2mm
Outer cable diameter, min.	28.6mm
Pitch of thread	1.5mm
Protection degree	IP66, IP68 - 2.5 bar
Protection degree with GWDR	IP66, IP68 - 2.5 bar
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	3394d55b-7892-488f-8603-ea218c1d0691
Seal insert	Silicone
Sealing	Silicone
Size of protective cap	EL55
the inner and outer insulation. When the cable gland is	Qty.
Type of armouring	Single-wire armouring,
Type of armouring, short term	SWA, STA, SWB
Version	KDSU (Klippon double seal universal Ex cable
Water depth	25 m (30 Min.)
