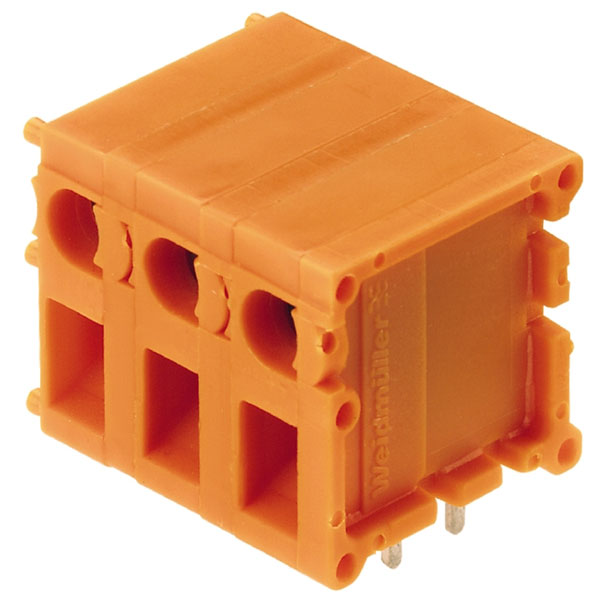

Weidmüller produces the 0642560000 PCB Terminal, which is a 7.62mm unshrouded female connector. It features reliable connection technology designed for straightforward installation in electrical circuits. This terminal is typically used in industrial applications where secure and durable connections are essential.
| Pitch |
7.62mm |
| Mounting Type |
Through Hole |
| Mounting Direction |
Horizontal |
| Wire Gauge (AWG) |
26 - 14 AWG |
| Wire Termination |
Screwless |
| (Tu=20°C) |
(Tu=40°C) |
| (Tu=40°C) |
pollution degree II/2 |
| Approvals |
CSA |
| Available until |
2023-03-31T00:00:00+02:00 |
| Certificate No. (CSA) |
154685-1501716 |
| Clampable conductor |
Cross-section for conductor connection |
| Clamping range, max. |
2.5mm² |
| Clamping range, min. |
0.13mm² |
| Clamping screw |
M 2.5 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Colour |
Orange |
| Colour chart (similar) |
RAL 2000 |
| Comparative Tracking Index (CTI) |
= 600 |
| Conductor outlet direction |
90° |
| Contact Material |
CuZn |
| Contact surface |
tinned |
| Cross-section for conductor connection |
Type |
| Current Rating |
10A |
| Delivery status |
Discontinued |
| Depth |
19.5 |
| Depth (inches) |
0.7677 inch |
| ECLASS 14 |
27-46-01-01 |
| ECLASS 15.0 |
27-46-01-01 |
| ETIM 10 |
EC002643 |
| ETIM 8.0 |
EC002643 |
| ETIM 9.0 |
EC002643 |
| Fitted by customer |
No |
| Flammability Rating |
UL94 V-2 |
| Flexible, max. H05(07) V-K |
2.5mm² |
| Flexible, min. H05(07) V-K |
0.5mm² |
| GTIN (EAN) |
4008190061425 |
| Height |
22mm |
| Height (inches) |
0.8661 inch |
| Height of lowest version |
18.5mm |
| Housing Colour |
Orange |
| Institute (CSA) |
CSA |
| Insulating material |
PA |
| Insulating material group |
I |
| Insulation Material |
Nylon |
| Insulation Resistance |
= 108 O |
| IPC conformity |
Conformity: The products are developed, manufactured and delivered according international |
| L1 in inches |
2.700 " |
| L1 in mm |
68.58mm |
| Layer structure of solder connection |
1.5...3 µm Ni / 4...6 µm Sn |
| Maximum Operating Temperature |
100 |
| Minimum Operating Temperature |
-50°C |
| Moisture Level (MSL) |
UL 94 flammability rating |
| Mount |
Through Hole |
| Mounting onto the PCB |
THT solder connection |
| Net weight |
40.1g |
| Notes |
•Additional variants on request |
| Number of Circuits |
10 |
| Number of Contacts |
10 |
| Number of Poles |
10 |
| Number of Rows |
1 |
| Number of solder pins per pole |
2 |
| Order No. |
1539860000 |
| Orientation |
Right Angle |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.300 " |
| Pitch in mm (P) |
7.62mm |
| Plug gauge in accordance with EN |
2.4 mm x 1.5 mm |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 1000 V / 24 A / 0.5 - 2.5mm² |
| Product family |
OMNIMATE Signal - series |
| Protection degree |
IP20 |
| Radiation Hardening |
No |
| Rated current (Use group B / CSA) |
10 A |
| Rated current (Use group B / UL 1059) 10 A |
Rated current (Use group D / UL 1059) 10 A |
| Rated current (Use group D / CSA) |
10 A |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated voltage (Use group D / UL 1059) 300 V |
| Rated voltage (Use group D / CSA) |
300 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Reference text |
Length of ferrules is to be chosen depending on the product and the rated voltage., The outside |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| RoHS Compliant |
Yes |
| Screwdriver blade |
0.6 x 3.5 |
| Screwdriver blade standard |
DIN 5264 |
| Solder eyelet hole diameter (D) |
1.3mm |
| Solder pin dimensions |
0.8 x 1.0 mm |
| Solder pin length (l) |
3.5mm |
| Solid, max. H05(07) V-U |
2.5mm² |
| Solid, min. H05(07) V-U |
0.5mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Temperature range, installation, max. |
100°C |
| Temperature range, installation, min. |
-25°C |
| Termination |
Solder |
| tested acc. to standard |
IEC 60664-1, IEC 61984 |
| Tightening torque, max. |
0.5 Nm |
| Tightening torque, min. |
0.4 Nm |
| Type |
PCB terminal |
| Version |
Printed circuit board terminals, 7.62 mm, Number |
| Voltage Rating |
300V |
| Volume resistance |
1.20 mO |
| VPE height |
47.00mm |
| VPE length |
179.00mm |
| VPE width |
110.00mm |
| Width |
78mm |
| Width (inches) |
3.0709 inch |
| Wire connection method |
TOP connection |
| Wire cross-section, AWG, max. |
AWG 14 |
| Wire cross-section, AWG, min. |
AWG 26 |
| wire end ferrule |
Stripping length |
