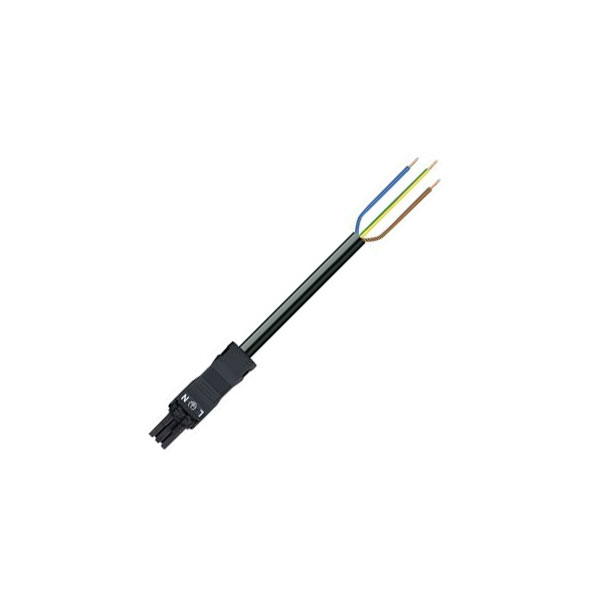

WAGO 891-8993/205-201 Mains Cable Plug-Open Ends 2+PE Pins Black

WAGO manufactures a black mains cable with an open cable end, designed with a 2 + PE pin configuration for secure connections. This lockable mains connector, suitable for use as a power plug or mains adapter, features a durable structure with 3 x 1 mm² cable dimensions, ideal for various electrical installations. Its typical applications include providing reliable power connections in residential, commercial, and industrial environments.

Type	Mains cable
Output Current	Not Applicable
Cable diameter (details)	3 x 1mm²
Cable Length	2m
Cable Type	H05VV-F
Category	Pluggable Connectors
Coding	A
Colour	black
Connector Type	Plug, straight
Continuous Use Temperature	-35 … +85 °C
Cores	3
Cross Section	3 x 1 mm²
Cross section per core	1mm²
Factory colour	Black
Height	14mm
Height inch	0.551inches
Leading Contact (Pe)	Yes
Material (details)	PVC
Misc Attribute 2	Connector
Nominal Current	10A
Nominal current (details)	16A
Nominal Voltage	250V
Nominal voltage (details)	250V
Number of pins	2
Product Main Function	Cable assembly
Rated current	10 A
Stripping length of 1 mm	9mm
Stripping length up to 1 mm	9mm
Total no. of pins	2 + PE
Total number of potentials	3
Type A	Mains plug
Type B	Open cable ends
Unit Weight	KGM
Weight	154.412g
Width	17.9mm
Width inch	0.705inches
