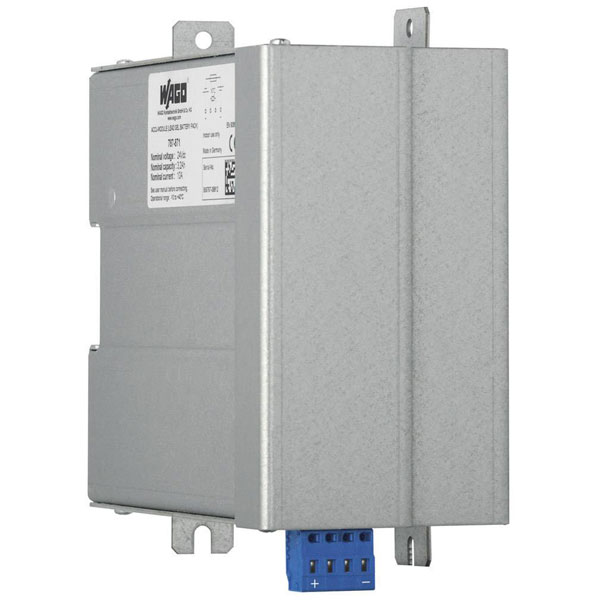

WAGO 787-872 EPSITRON UPS Energy Storage Lead Gel Battery Module

Image Representative of Range

WAGO 787-872 EPSITRON UPS Energy Storage Lead Gel Battery Module

WAGO
Order Code:

13-4420

Brand: WAGO MPN: 787-872 EAN-13: 4045454909840
Qty Unit Price (Ex VAT)
1+ £206.39
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The WAGO EPSITRON® 787-872 energy storage unit is designed for reliable power supply applications. It features high energy efficiency and compact design, making it suitable for industrial automation systems. Typical uses include providing backup power and stabilising voltage fluctuations in control cabinets.
Type Energy storage
Output Voltage 24V DC
Base Unit of Measure PCE
Bridging time, max load 60s
Category Power Supplies
Connection Push-in CAGE CLAMP®
Country of origin DE
Customs tariff number 85072080900
Depth 217.5mm
Depth inch 8.563 inches
Depth mm 217.5 mm
Dim (W x H x D) 86 x 239 x 217.5 mm
ETIM8 Link Classification Reference EC000357
Fine-stranded conductor max. AWG 8 AWG
Fine-stranded conductor max. mm² 10 mm²
Fine-stranded conductor min. AWG 8 AWG
Fine-stranded conductor min. mm² 0.5 mm²
Gross weight incl. packing 6.5
Height 239mm
Height in mm Packaging 88
Height inch 9.409 inches
Height mm 239 mm
Input voltage (max.) 24V DC
Interfaces none
Length in mm Packaging 220
Manufacturer WAGO
Min. input voltage 24V DC
Misc Attribute EPSITRON® 787-872
No of Outlets 2
of which battery-buffered 2
Packaging Box
Product Main Function Uninterruptible power supply
Rechargeable battery capacity (details) 7Ah
Single-stranded conductor max. AWG 8 AWG
Single-stranded conductor max. mm² 10 mm²
Single-stranded conductor min. AWG 20 AWG
Single-stranded conductor min. mm² 0.5 mm²
Status ACTIVE
Stripping length of 1 mm 13 mm
Stripping length up to 1 mm 15 mm
Unit of dimension (length, etc.) MMT
Unit Weight KGM
Width 86mm
Width in mm Packaging 225
Width inch 3.386 inches
Width mm 86 mm
with surge protection 2
