Potential Distribution Module; 1 Potential; With 8 Clamping Points 24V; Conductor Cross-Section Up To 2.5 Mm²

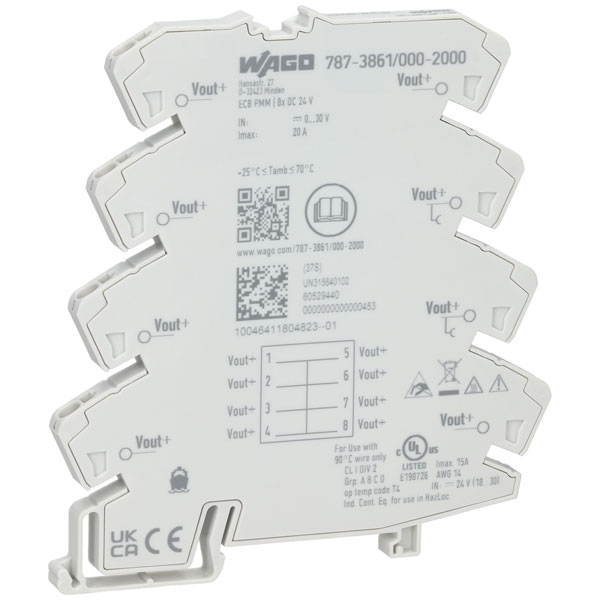

This WAGO 787-3861/000-2000 potential distribution module is designed for use in SELV circuits. DIN-rail mounting, with a single 24V potential and 8 clamping points, it provides a space saving potential distribution solution.
- 1 potential, with 8 clamping points 24V
- Conductor cross-section: up to 2.5mm²
- Operating voltage range: from 0 to 30V DC
- Limiting continuous current: 20A, 15A (UL)
- Ingress Protection: IP20
- Connection type: Push-in CAGE CLAMP® technology
- Mounting: DIN-35 rail
- Manufacturer part 787-3861/000-2000
| Type |
Potential distribution module |
| Current Rating |
20a |
| Voltage Rating - DC |
24V DC |
| Category |
Component Modules |
| Connection |
Push-in CAGE CLAMP® |
| Current Ratng |
20A |
| Dimensions |
94 x 6 x 97.8mm |
| Fine-stranded conductor max. AWG |
14 AWG |
| Fine-stranded conductor max. mm² |
2.5mm² |
| Fine-stranded conductor min. AWG |
14 AWG |
| Fine-stranded conductor min. mm² |
0.34mm² |
| Height |
94mm |
| Height inch |
3.701inches |
| IP Rating |
IP20 |
| Mounting Type |
DIN-35 rail |
| Number of Poles |
8 |
| Product Main Function |
Potential Distribution Module |
| Single-stranded conductor max. AWG |
14 AWG |
| Single-stranded conductor max. mm² |
2.5mm² |
| Single-stranded conductor min. AWG |
26 AWG |
| Single-stranded conductor min. mm² |
0.08mm² |
| Stripping length of 1 mm |
9mm |
| Stripping length up to 1 mm |
10mm |
| Total number of potentials |
1 |
| Total number of terminal points |
8 |
| Unit Weight |
KGM |
| Voltage Rating |
24V DC |
| Weight |
55.7g |
| Width |
6mm |
| Width inch |
0.236inches |
