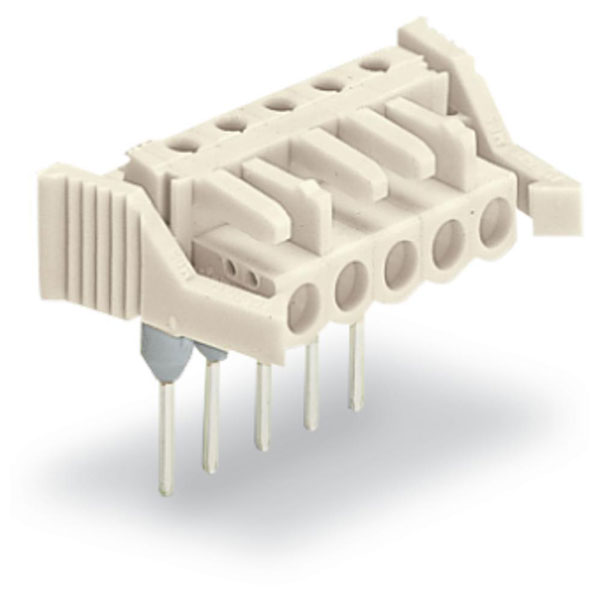

WAGO 722-233/005-000/039-000 Female MCS-MIDI 3P 5mm Angled Contact Pins

WAGO
Order Code:

57-2414

Brand: WAGO MPN: 722-233/005-000/039-000 EAN-13: 4044918572439
Qty Unit Price (Ex VAT)
50+ £2.81
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 50
Available to back orderBack-order availability date - 30/04/2026


  • Additional product details: FEDERL.FV-REIHENKL.ABGEW./FS/3-POL
  • Colour: Light grey
  • Contact material: Copper alloy
  • Grid pitch: 5mm
  • Type (manufacturer type): FEDERL.FV-REIHENKL.ABGEW./FS/3-POL
Body Style Female connector/socket
Pitch 5mm
No of Ways Per Row 3
No. of Rows 1
Current Rating 12 A
Colour Grey
Wire Gauge (AWG) N/A
Wire Gauge (mm²) N/Amm²
Category PCB Terminal Blocks and Connectors;Pluggable Connectors
Depth 18.25mm
Depth inch 0.719inches
Flammability class according to UL94 V0
Height 26.1mm
Height inch 1.028inches
Rated surge voltage (II / 2) 4 kV
Rated voltage (II / 2) 630 V
Total number of potentials 3
Unit Weight KGM
Weight 4.060 g
Width 30.9mm
Width inch 1.217inches
