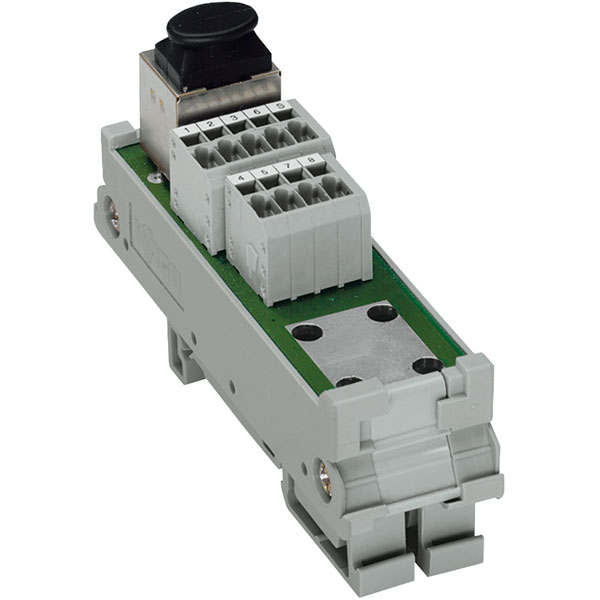

WAGO 289-175 Interface Module for Ethernet RJ-45 24 x 40 x 85mm

WAGO
MPN
289-175
Brand
WAGO
EAN-13
4045454317522
Order Code
50-4934
Country of Origin
Germany
View Full Product Range (3)
Qty Unit Price (Ex VAT)
1+ £57.50
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 10/07/2026

The WAGO Interface Module for Ethernet RJ-45 with shield area for WAGO shield clamping saddle. Terminals with Cage Clamp® (WAGO Series 739) 0.08-1.5 mm²/AWG 28-14.

The CAGE CLAMP® connection technique allows stripped solid and ferruled conductors to be pushed in. With their space saving design, the terminal block is up to 30% smaller than standard terminal block and with a conductor entry angle of less than 15° which allows easier installation in smaller spaces.


  • Grey colour
  • CAGE CLAMP®S Connection
  • Manufacturer's part: 289-175
Type RJ45- Terminal Block Interface Module
Termination RJ45, Cage clamp
No of Ways 9
Category Interface Modules and System Wiring
Colour Multi-coloured
Height 85mm
Height inch 3.346inches
Maximum Temperature +50°C
Min. temperature -20°C
Product Main Function Interface module
Unit Weight KGM
Weight 34.956g
Width 24mm
Width inch 0.945inches
Width mm 24mm
