WAGO 284-624 17.5mm Dist. T-blk. 3 Cage Cl./1 Screw Cl. Blue

MPN: 284-624
Brand: WAGO
EAN-13: 4045454282578
Order Code: 58-8142
Country of Origin: India

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
15+	£12.98
60+	£12.37

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 15

Available to back orderBack-order availability date - 28/06/2026

Product Details
Data Sheets
Quick Quote

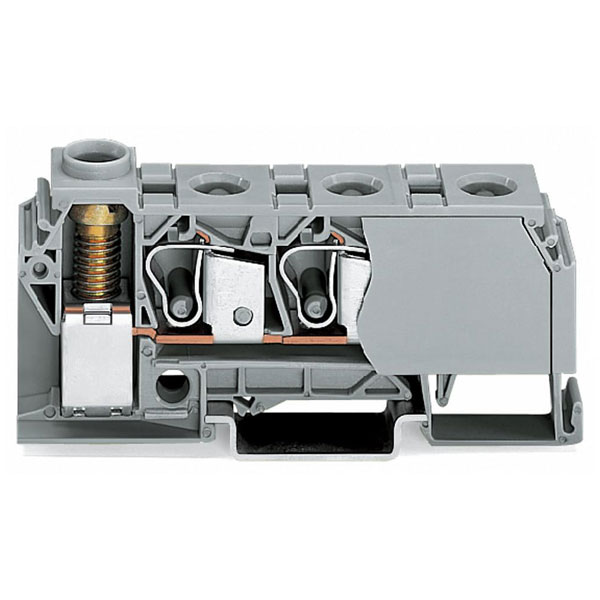

Distribution terminal block from the WAGO 284 series with 3 CAGE CLAMP® connectors and 1 x 35mm² screw clamp connector.

Nominal current 125A
Number of connection points 4
Number of potentials 1
AWG max. 8
AWG min. 24
Max. cross section 10mm²
Min. cross section 0.2mm²
Colour: blue
Width 17.5mm
Height 39.5mm
Depth 89mm
Manufacturer's part 284-624

Pitch	7.5mm
No. of Ways	1
Termination	Cage clamp
Width	10mm
Wire Gauge (mm²)	10mm²
Body Style	Vertical
Category	Rail-Mount Terminal Blocks
Colour	blue
Connectable conductor materials	Copper
Connection	CAGE CLAMP®
Continuous Use Temperature	-60 … +105 °C
Current Rating	125A
Fine-stranded conductor max. AWG	8 AWG
Fine-stranded conductor max. mm²	10mm²
Fine-stranded conductor min. AWG	8 AWG
Fine-stranded conductor min. mm²	0.2mm²
Flammability class according to UL94	V0
Height	89mm
Height inch	3.504inches
Max. Conductor Size	10mm²
Mounting Type	DIN rail
Product Main Function	Distribution terminal block
Rated current	125 A
Single-stranded conductor max. AWG	8 AWG
Single-stranded conductor max. mm²	10mm²
Single-stranded conductor min. AWG	24 AWG
Single-stranded conductor min. mm²	0.2mm²
Stripping length of 1 mm	12mm
Stripping length up to 1 mm	14mm
Total number of pins	4
Type of operation	Operating tool
Unit Weight	KGM
Weight	55.600g
Width inch	0.689inches
Width mm	17.5mm
Wire Gauge (AWG)	8AWG
Wiring Type	Front-/side-entry wiring
