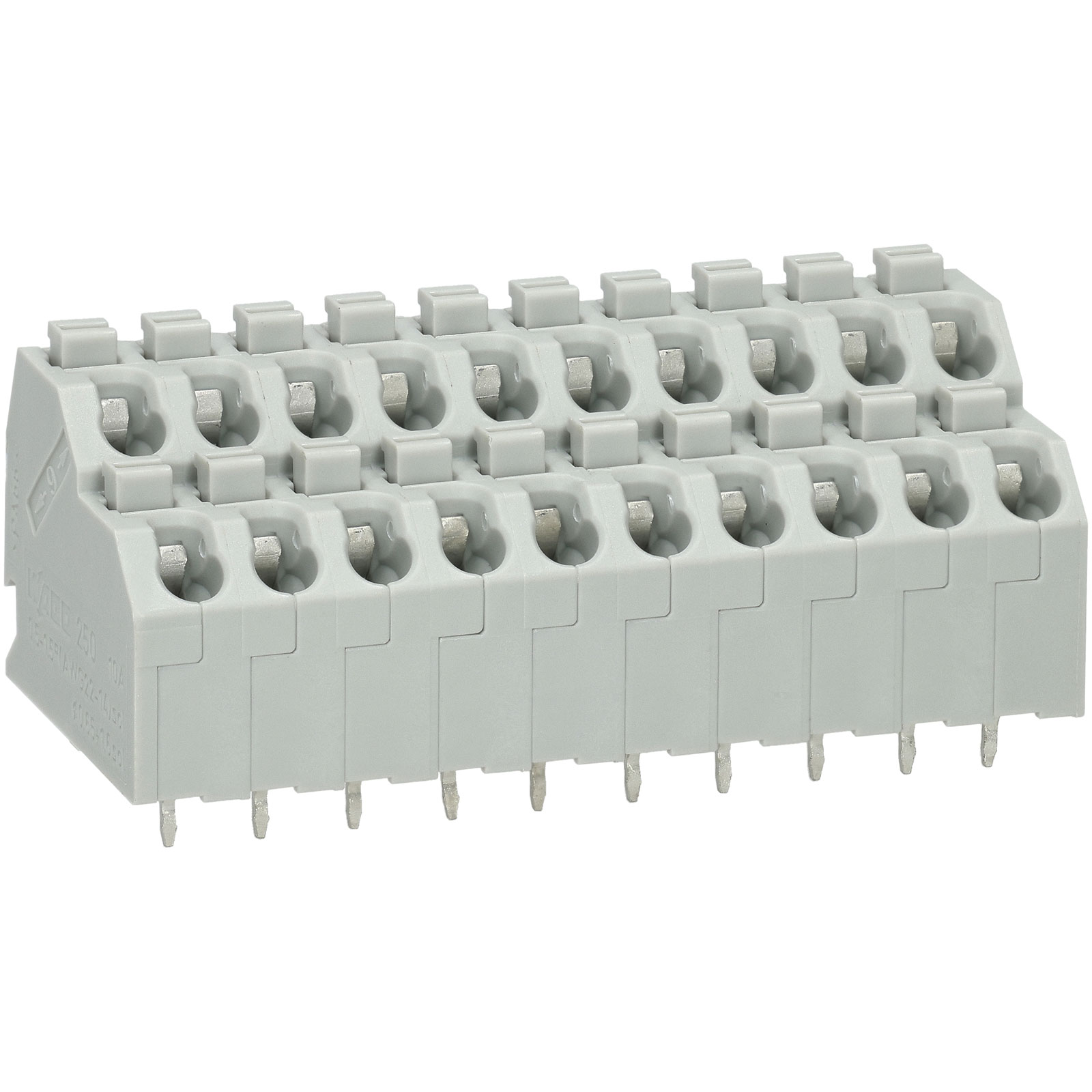

Double-deck PCB terminal block; push-button; 1.5 mm²; Pin spacing 5 mm; 20-pole; Push-in CAGE CLAMP®; 1,50 mm²; agate grey
This 20-pole, 5mm pitch, double-deck PCB mounting terminal block from WAGO is easy to use with push-in action and a space saving 45° conductor entry angle.
- 20-pole double-deck terminal block
- Space-saving, double-deck terminal strips with push-buttons
- Push-in termination of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring
- Manufacturer's part 250-710
| Pitch |
5mm |
| No. of Ways |
20 |
| Mounting Type |
Through Hole |
| Mounting Direction |
45° |
| Wire Gauge (AWG) |
20 to 16 AWG |
| Wire Termination |
Push-in CAGE CLAMP® |
| Category |
PCB Terminal Blocks and Connectors;Lighting Connection |
| Colour |
Grey |
| Current Rating |
10A |
| Depth inch |
0.854 inches |
| Depth mm |
21.7mm |
| Fine-stranded conductor max. mm² |
1.5 mm² |
| Fine-stranded conductor min. mm² |
0.75 mm² |
| Flammability class according to UL94 |
V0 |
| Height inch |
0.98 inches |
| Height mm |
24.9mm |
| No. of Levels |
2 |
| Product Main Function |
PCB terminal block |
| Rated current |
10 A |
| Rated surge voltage (II / 2) |
4 kV |
| Rated voltage (II / 2) |
630 V |
| Single-stranded conductor max. AWG |
16 AWG |
| Single-stranded conductor max. mm² |
1.5 mm² |
| Single-stranded conductor min. AWG |
20 AWG |
| Single-stranded conductor min. mm² |
0.5 mm² |
| Stripping length of 1 mm |
9mm |
| Stripping length up to 1 mm |
10mm |
| Total number of potentials |
20 |
| Total number of terminal points |
20 |
| Type |
Terminal Block PCB |
| Type of operation |
Push-button |
| Unit Weight |
KGM |
| Voltage Rating |
300V |
| Weight |
19.231 g |
| Width inch |
2.016 inches |
| Width mm |
51.2mm |
| Wire Gauge (mm²) |
1.5mm² |
