WAGO 250-510 10 Pole 5mm 17.5A 45° Push Button PCB Terminal Block Grey

Inc VAT

Qty	Unit Price (Ex VAT)
20+	£2.70

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 20

Available to back orderBack-order availability date - 18/07/2026

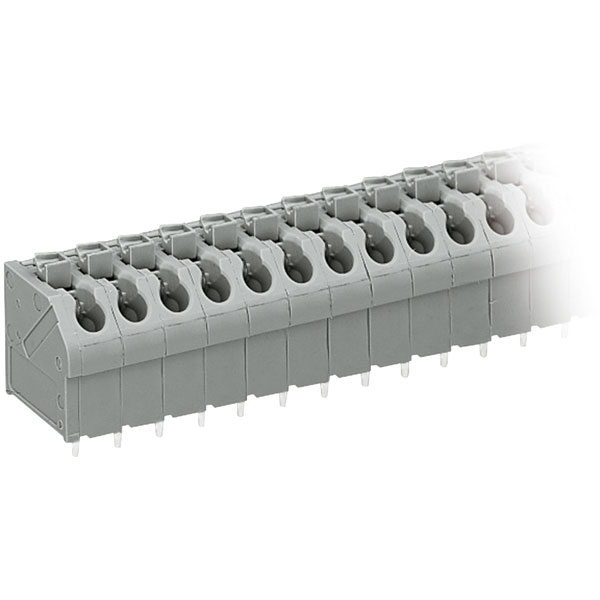

This 10-way PCB push button terminal block from WAGO has a 45° entry angle for easy, space-saving wiring.

Pitch	5mm
No. of Ways	10
Mounting Type	Through Hole
Mounting Direction	45°
Wire Gauge (AWG)	20 - 14 AWGmm²
Wire Termination	Push-in CAGE CLAMP®
Category	PCB Terminal Blocks and Connectors;Lighting Connection
Colour	Grey
Current Rating	17.5A
Depth	13mm
Depth inch	0.512inches
Fine-stranded conductor max. AWG	16 AWG
Fine-stranded conductor max. mm²	1.5mm²
Fine-stranded conductor min. AWG	16 AWG
Fine-stranded conductor min. mm²	0.75mm²
Flammability class according to UL94	V0
Height	20.5mm
Height inch	0.807inches
Maximum Wire Size AWG	16
No. of Levels	1
Number	of poles 10
Number of pins	10
Product Main Function	PCB terminal block
Rated current	17.5 A
Rated surge voltage (II / 2)	4 kV
Rated voltage (II / 2)	630 V
Single-stranded conductor max. AWG	14 AWG
Single-stranded conductor max. mm²	1.5mm²
Single-stranded conductor min. AWG	20 AWG
Single-stranded conductor min. mm²	0.5mm²
Stripping length of 1 mm	9mm
Stripping length up to 1 mm	10mm
Total number of potentials	10
Total number of terminal points	10
Type	Spring-loaded terminal
Type of operation	Push-button
Unit Weight	KGM
Voltage Rating	300V
Weight	9.646g
Width	51.5mm
Width inch	2.028inches
