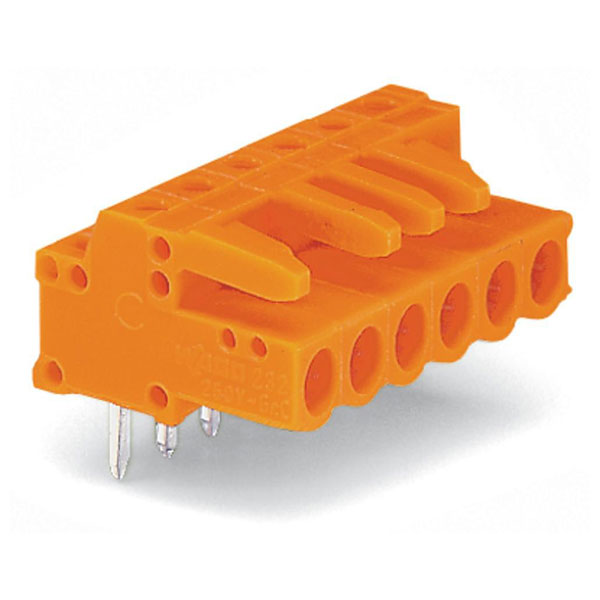

WAGO 232-271 Female MCS-MIDI 11P 5.08mm Angled Solder Pins

WAGO
Order Code:

57-3738

Brand: WAGO MPN: 232-271 EAN-13: 4044918579551
Qty Unit Price (Ex VAT)
25+ £4.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 25
Available to back orderBack-order availability date - 24/04/2026


  • Additional product details: PCB FEM.CONN. SOLDER, W. COD.FINGER
  • Colour: Orange
  • Contact material: Copper alloy
  • Dimensions, width: 57.38mm
  • Grid pitch: 5.08mm
  • Type (manufacturer type): PCB FEM.CONN. SOLDER, W. COD.FINGER
  • Weight: 9.59g
Body Style Female connector/socket
Pitch 5.08mm
No of Ways Per Row 11
No. of Rows 1
Current Rating 12 A
Colour Orange
Wire Gauge (AWG) N/A
Wire Gauge (mm²) N/A
Category PCB Terminal Blocks and Connectors;Pluggable Connectors
Depth inch 0.719 inches
Depth mm 18.25mm
Flammability class according to UL94 V0
Height inch 0.654 inches
Height mm 16.6mm
Rated surge voltage (II / 2) 4 kV
Rated voltage (II / 2) 630 V
Total number of potentials 11
Unit Weight KGM
Weight 10.210 g
Width inch 2.259 inches
Width mm 57.38mm
