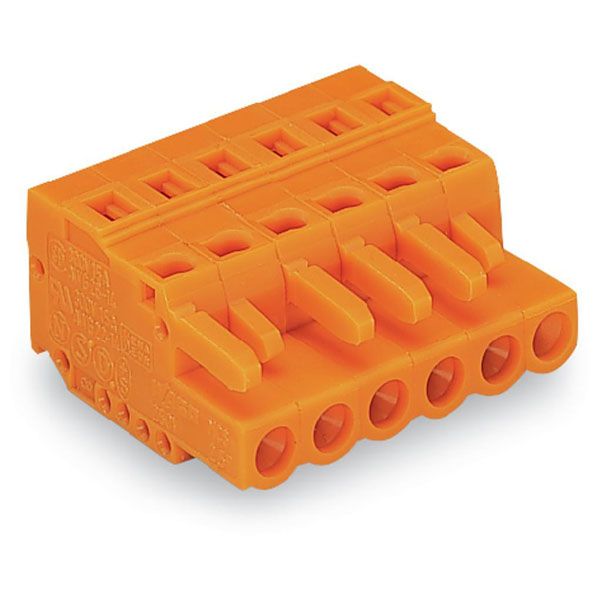

WAGO 231-306/102-000 Female Integrated End Plate 6P Pitch 5.08 mm

WAGO
Order Code:

57-3277

Brand: WAGO MPN: 231-306/102-000 EAN-13: 4044918372725
Qty Unit Price (Ex VAT)
50+ £3.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 50
Available to back orderBack-order availability date - 13/04/2026


  • Number of Poles: 6
  • AWG size: 28 - 12
  • Additional product details: TERM.STRIP 2.5/1.5 SQMM 2 POLES
  • Colour: Orange
  • Contact material: Copper alloy
  • Grid pitch: 5.08mm
  • Stripping length: 8 - 9mm
  • Type (manufacturer type): TERM.STRIP 2.5/1.5 SQMM 2 POLES
  • Pack Size: 50
Body Style Female connector/socket
Pitch 5.08mm
No of Ways Per Row 6
No. of Rows 1
Current Rating 16 A
Colour Orange
Wire Gauge (AWG) 28 AWG
Wire Gauge (mm²) 0.08 mm²
Category PCB Terminal Blocks and Connectors;Pluggable Connectors;Lighting Connection
Connection CAGE CLAMP®
Depth inch 1.041 inches
Depth mm 26.45mm
Flammability class according to UL94 V0
Height inch 0.563 inches
Height mm 14.3mm
Rated surge voltage (II / 2) 4 kV
Rated voltage (II / 2) 630 V
Stripping length of 1 mm 8mm
Stripping length up to 1 mm 9mm
Total number of potentials 6
Type of operation Operating tool
Unit Weight KGM
Weight 10.596 g
Width inch 1.2 inches
Width mm 30.48mm
