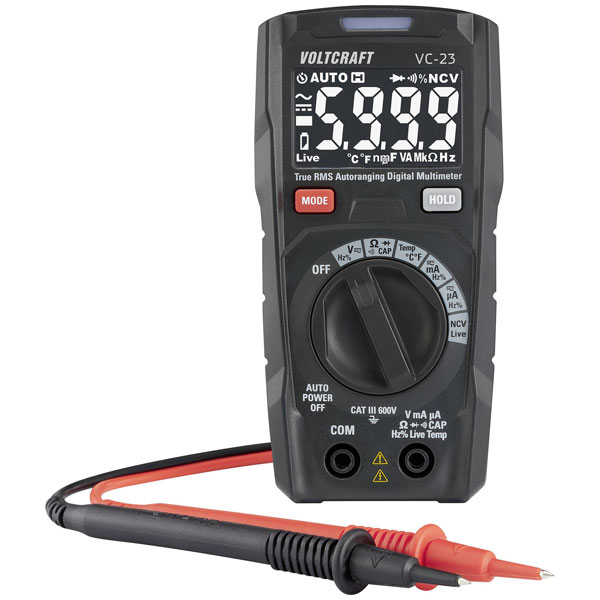

The VOLTCRAFT VC-23 is a handheld digital multimeter capable of voltage measurement up to CAT III 600 V with a display resolution of 6000 counts.
This versatile instrument functions as a voltmeter, ammeter, and frequency tester, making it suitable for a range of electrical testing applications.
Ideal for both professional and home use, it serves as a reliable tool for diagnosing and troubleshooting electrical installations and equipment.
| Type |
Handheld multimeter |
| A AC reading range (min.) |
0.1µA |
| A DC reading range (max.) |
600mA |
| Amperage reading range AC (max.) |
600mA |
| Amperage reading range DC (min.) |
0.1µA |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dim |
(L x W x H) 65 x 32 x 129 mm |
| Display |
Digital |
| Display (counts) |
6000 |
| Frequency Range |
10 Hz ~ 100kHz |
| Frequency reading range |
10 Hz ~ 100kHz |
| Height |
129mm |
| Length |
65mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
VC-23 |
| Plastic free packaging |
Plastic-free packaging |
| Power supply (details) |
3V DC |
| Reading category |
CAT III 600 V |
| Reading frequency |
10 Hz ~ 100kHz |
| Reading range - capacity |
99.99mF |
| Reading range - resistance |
60MΩ |
| Temperature |
-20 ~ 760°C |
| Temperature reading range (max.) |
760°C |
| Temperature reading range (min.) |
20°C |
| V AC reading range (max.) |
600V |
| V AC reading range (min.) |
0.001V |
| Voltage DC reading range (max.) |
600V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Width |
32mm |
