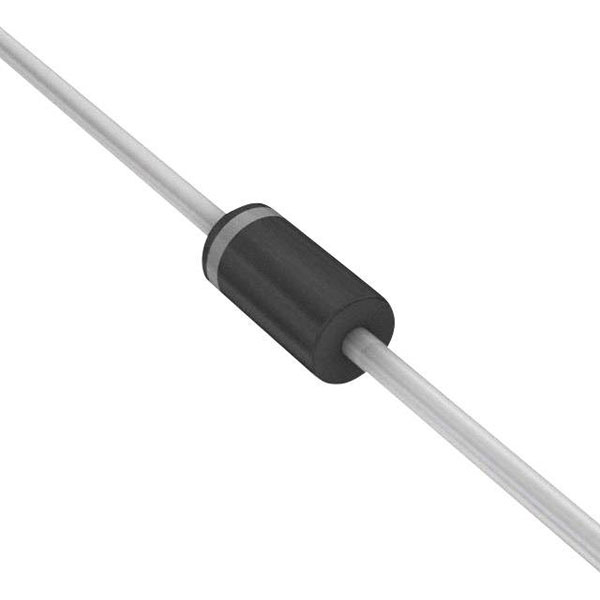

Vishay SB340-E3/54 Schottky rectifier DO 201AD 40V Single Schottky Diodes

Vishay SB340-E3/54 is a robust Schottky diode designed for efficient rectification applications. Featuring a p-n junction made with advanced semiconductor materials, it offers a reverse voltage capability of up to 40 volts and forward current up to 3 amperes, making it suitable for low-voltage high-frequency power systems. This diode's low forward voltage drop and fast switching capability reduce power loss and improve overall efficiency, making it ideal for use as a blocking diode in solar panels, power converters, and battery charging systems. Its compact design in the DO-201AD package ensures durability and ease of integration into existing circuits, supporting high reliability in demanding environments.

To find out more about our range of Vishay resistors, diodes, capacitors and switches, please visit our Vishay brand page.

Type	SB340-E3/54
Configuration (diode)	Single
Content	1
Enclosure	DO 201AD
Forward current I(F)	3A
Forward voltage reference	3A
Forward Voltage U(F)	490mV
Mounting Type	Through-hole
Operating temperature (max.)	+125°C
Operating temperature (min.)	-65°C
Product Type	Schottky rectifier
Reverse leakage Current I(r)	20mA
Reverse leakage current I(r) reference	40V
Reverse Voltage U(R)	40V
