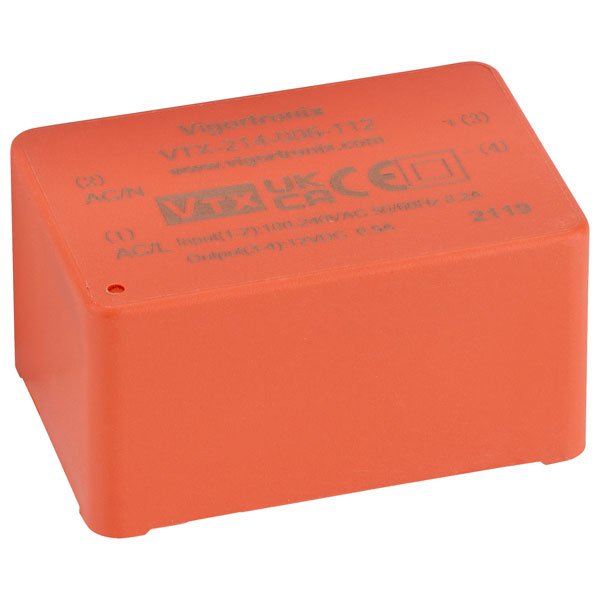

Vigortronix VTX-214-006-112 6W SMPS AC-DC Converter 12V Output

This Vigortronix AC-DC 6W single output switched mode power supply (SMPS) is designed for applications where space is limited, thanks to the encapsulated design of the module which boasts over power, over current and short circuit protection.

Weighing just 56g, this PCB mounted SMPS is not only cost-effective, but also boasts a host of features, such as 4200Vrms primary to secondary isolation, low standby power (<0.3W), -25°C to +70°C operating temperature (full load), low ripple and noise and >70% efficiency.

For details of the Vigortronix VTX-214-PCB1 'Plug and Play' Universal AC-DC Converter Mounting Kit please see 84-2157.

• Output 12V DC
• Input 90 to 265V AC, 47 to 63Hz
• Ultra-compact size
• Single 6W regulated output (4-pin)
• Low standby power <0.3W
• Encapsulated design
• Materials UL94-V0
• Safety rated EN61558, EN60950, CE, UL
• Dimensions 45.5 x 30 x 24mm
