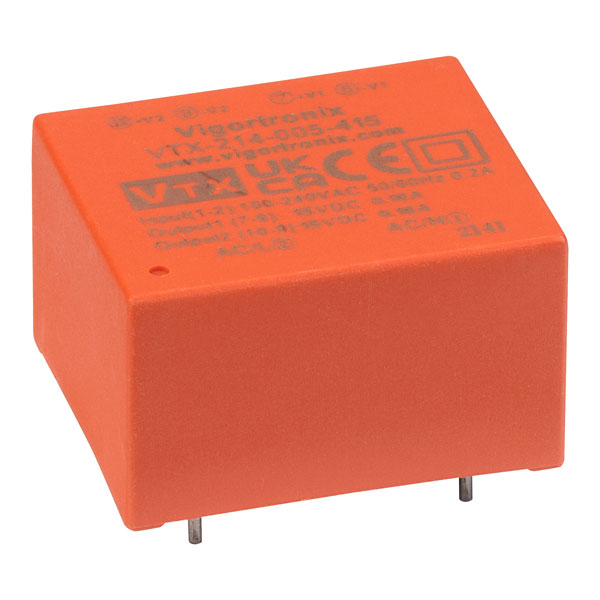

Vigortronix VTX-214-005-415 5W AC-DC Converter Dual Output 2 x 15V

This 5W AC-DC Dual Output Regulated Converter from Vigortronix has a compact size and is small enough to be used in applications where space is limited.

This PCB mountable converter is cost-effective and boasts Pri/Sec full isolation, low standby power (<0.3W), -40°C to +70°C operating temperature (full load) and low ripple/noise, while offering over power, over voltage and short circuit protection.

• Colour: Orange
• Power rating 5W
• Compact size: 32.5 x 27.5 x 19.5mm
• Voltage range: 90 to 264V AC, 47 to 63Hz
• Low Standby Power: <0.3W
• Insulation: Class II
• Materials: UL94-V0
• Safety: EN61558, EN60950, CE
• Primary output voltage 15V DC
• Secondary output voltage 15V DC
• Primary output current 138mA
• Secondary output current 138mA
• Manufacturer's part number VTX-214-005-415
